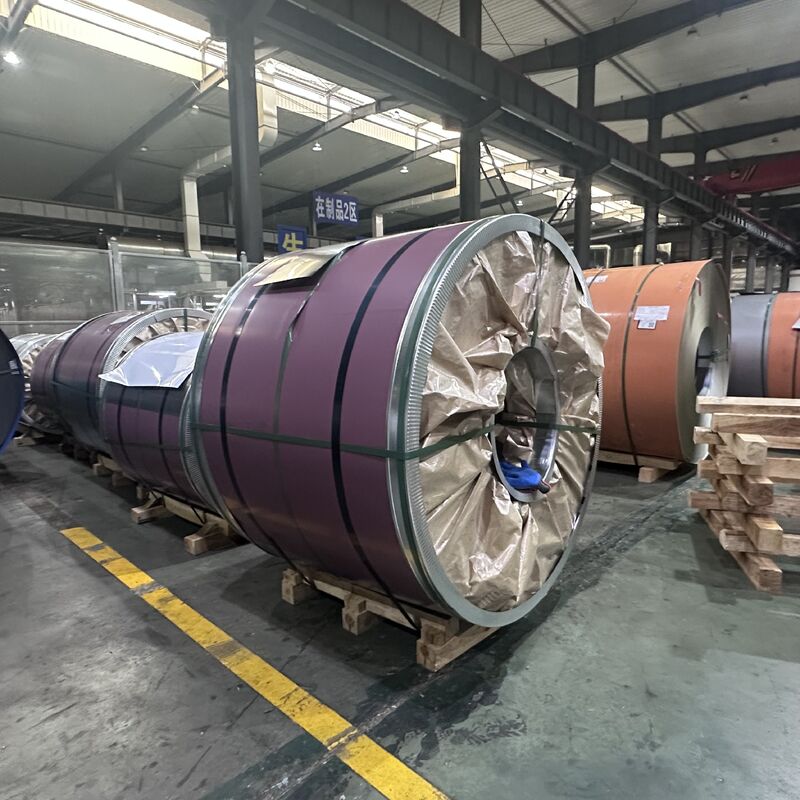

Electrolytic Tinplate Coil for Food Cans & Packaging

Our engineered Tinplate Coil represents the benchmark in modern packaging substrates, designed specifically to meet the rigorous demands of global canning and container manufacturers. Operating as a critical food can material, this material consists of cold-rolled steel sheets coated with a microscopic, highly uniform layer of pure electrolytic tin. This complex composite structure delivers the mechanical strength and ductility of low-carbon steel alongside the excellent surface properties of tin.

The defining characteristic of our Tinplate Coil is its exceptional corrosion resistance. Tin acts as a physical barrier and a sacrificial anode, shielding the underlying steel sheet from oxidation, rust, and acidic food acids. When formatted into food can material, our tinplate prevents any chemical reaction between the metal and preserved food items, safeguarding the flavor, freshness, color, and nutritional value of canned goods. In addition to food acids, our tinplate exhibits high alkali resistance, making it suitable for chemical and domestic packaging.

Engineered to support a wide range of secondary processes, this versatile metal substrate has superior surface adhesion. Whether your operations require automated high-speed lacquering, lithographic printing, thermal transfer, or powder spraying, the surface is optimized to prevent peeling or blistering, ensuring a flawless finish. The material also displays remarkable heat resistance, allowing it to withstand high-temperature sterilization and baking processes without losing its physical integrity.

Recognizing that every packaging line and product formulation has unique specifications, we offer comprehensive customization across all physical properties of our Tinplate Coil. We do not believe in one-size-fits-all solutions; instead, we partner with manufacturers to deliver tailor-made material configurations that maximize production line efficiency and reduce material waste.

• Surface Finish Options: Choose from Bright (for high-gloss, reflective decorative cans), Stone (featuring a fine-grained texture that aids in scratch resistance), Matte (for a sophisticated, low-reflection modern aesthetic), or Silver (ideal for specific printing and metallic finishes).

• Dimensional Range: Precise thickness options ranging from 0.15mm to 0.45mm, with custom coil widths adjustable from 620mm to 1010mm.

• Differential Tin Coating: We support both equally coated and differentially coated options (e.g., 2.0/2.0, 2.8/2.8, or 5.6/5.6 g/m²) allowing you to allocate thicker tin coating on the internal side for corrosion-heavy food contents while optimizing costs on the exterior.

• Annealing and Hardness: Available in both Batch Annealing (BA) and Continuously Annealing (CA) options, spanning standard temper grades from soft T2 to highly rigid T5, as well as high-strength Double Cold-Reduced (DCR) grades (DR7 to DR10).

Our Tinplate Coil is optimized for targeted industrial sectors, most notably serving as the primary food can material. By balancing structural rigidity with chemical inertness, it has become the standard choice across a wide spectrum of packaging solutions:

• Food Cans: Perfect for preserved meats, fish, vegetables, fruits, and dairy products. The high corrosion resistance blocks the penetration of organic acids.

• Beverage Cans: Ideal for juices, carbonated soft drinks, teas, and functional beverages.

• General & Chemical Line Cans: Extensively utilized for industrial aerosol cans, paint pails, engine oil containers (1L to 18L), cosmetics, and household chemicals.

• Closures & Crowns: Used to manufacture bottle crown caps, jar lids, and twist-off closures where deep-drawing capability is mandatory.

Why Partner With Us?

We bring over 20 years of expert metallurgical and production experience. Every order is produced using top-tier hot-rolled coils, processed through advanced cold-rolling, annealing, and electrolytic tinning lines. We offer free product samples for technical testing, guaranteeing that our materials line up perfectly with your high-speed printing and stamping systems. Backed by rigorous mill certification, ISO 9001, and SGS certifications, we deliver reliable raw materials at optimized cost-efficiency.

• Q1: Can we obtain material samples for testing before committing to a commercial order?

  • A: Absolutely. We provide complimentary metal samples to global customers for quality and chemical testing. We only request that customers cover the initial international shipping costs, which will be credited back upon formal order placement.

• Q2: What specific parameters should I provide to get an accurate quotation?

  • A: To provide the most accurate pricing, please specify the steel grade (or temper requirement), exact coil width, thickness range, tin coating weight (internal/external), surface finish type, and total order volume in metric tons.

• Q3: How are the tinplate coils packed for long-distance maritime transport?

  • A: Moisture and seawater are the primary challenges during sea freight. Our packaging features an inner moisture-proof layer, a sturdy waterproof paper cover, a protective steel outer jacket, and sturdy iron edge guards. The entire assembly is securely strapped onto heavy-duty, fumigated wooden pallets to ensure zero rust or mechanical damage upon arrival.

• Q4: What quality control measures are implemented prior to shipping?

  • A: Quality control is integrated into every phase of production. We run continuous thickness monitoring, surface defect scanning, tension testing, and tin coating weight assays on every batch. Each shipment is delivered with an official Mill Test Certificate, and any batch failing to meet the specified ASTM or JIS standards is rejected at the factory.

• Q5: What certifications does your manufacturing facility hold?

  • A: Our facility and production processes are certified under ISO 9001, SGS, and EWC standards. Our tinplate materials also comply with strict food safety standards, making them fully compliant for food-contact packaging globally.
