Place of Origin:
China
Brand Name:
QuanJiang
Certification:
MILL CERTIFICATE
Model Number:
0.20mm T4BA T3BA Tinplate SPTE TFS
Contact Us
Video
Video
Video
Video

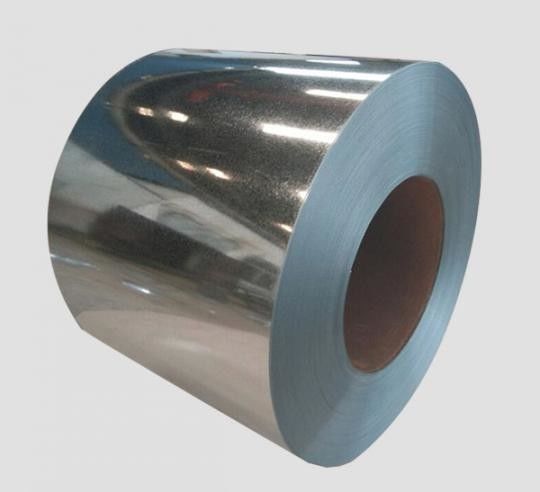

SPTE TFS MR tinplate consumer package coil sheet SPTE & TFS
| Applications of Tinplate and TFS | |
| ETP | ETP is primarily used for packaging foodstuffs and beverages, but it is also used in containers for oils, grease, paints, polishes, chemicals and many other products. Aerosol containers and caps and closures are also made from ETP. |
| TFS | TFS are most frequently used for can tops, screw and lug caps, snap and press-on closures and shallow-drawn food cans. |
| Q/BQB 450-2009 | JIS G3303:2008 | ASTM A623M-08 | DIN EN 10202:201 | ISO 11949:1995 | GB/T 2520-2008 | GB/T 2520-2000 | |
| Single cold-reduced | - | T-1 | T-1(T49) | TS230 | TH50+SE | T-1 | TH50+SE |
| T1.5 | - | - | - | - | T-1.5 | - | |
| T-2 | T-2 | T-2(T53) | TS245 | TH52+SE | T-2 | TH52+SE | |
| T-2.5 | T-2.5 | - | TS260 | TH55+SE | T-2.5 | TH55+SE | |
| T-3 | T-3 | T-3(T57) | TS275 | TH57+SE | T-3 | TH57+SE | |
| T-3.5 | - | - | TS290 | - | T-3.5 | - | |
| T-4 | T-4 | T-4(T61) | TH415 | TH61+SE | T-4 | TH61+SE | |
| T-5 | T-5 | T-5(T65) | TH435 | TH65+SE | T-5 | TH65+SE | |
| Double cold-reduced | DR-7M | - | DR-7.5 | TH520 | - | DR-7M | - |
| DR-8 | DR-8 | DR-8 | TH550 | T550+SE | DR-8 | T550+SE | |
| DR-8M | - | DR-8.5 | TH580 | T580+SE | DR-8M | T580+SE | |
| DR-9 | DR-9 | DR-9 | TH620 | T620+SE | DR-9 | T620+SE | |
| DR-9M | DR-9M | DR-9.5 | - | T660+SE | DR-9M | T660+SE | |
| DR-10 | DR-10 | - | - | T690+SE | DR-10 | T690+SE |
Application:
Tinplate is widely used for the packaging of products. Such as food cans,
beverage cans, pet cans, closures,general line cans and so on.
| Classification | Main Applications | |
| Food Cans | Cans for preserved food | Preserved fishery and agricultural products, etc. |
| Cans for beverages | Juice, carbonated soft drinks, other beverages, etc. | |
| General Cans | 4L Cans | Automobile oil, mechanical oil, etc. |
| 18L Cans | Industrial containers for paint and oils | |
| Pail Cans | Industrial containers for paint and oils | |
| Aerosol Cans | Cosmetics, butane gas, pesticide, etc. | |
| Crown | Crown Caps | Liquor, soft drink bottle caps |
PARTNER
Test Euqipment
Information Required with orders and inquirys
Orders and inquiried shall be accompanied by the following information.
1. products name and grade
2.coaing and mass( for Tinplate only),temper grade,finish, and products size.
3.rolling direction
4.quantity
5.application and delivery date
6.number of sheets per packaging( for cut to length products)
7.inside diameter amd maximum acceptable unit coil weight (for coils products).
8.film type,color, contents,and other details of use and environment.
9.other special requirements,if any.
Send your inquiry directly to us
