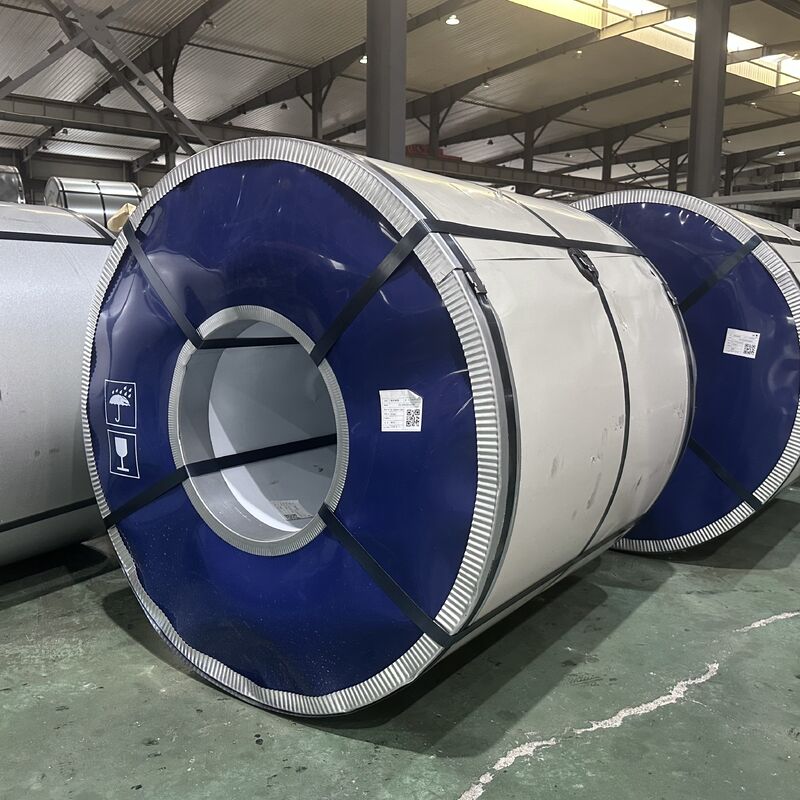

0.22mm T5 Tinplate Coil For Food Cans - High-Stiffness 2.8/2.8g/m² Coating

In modern automated packaging lines that process high-volume food and beverage containers, structural rigidity and exact material calibration determine the mechanical efficiency of the line. Our 0.22mm thickness Tinplate Coil series represents a targeted single-gauge engineering solution, manufactured through specialized cold reduction and highly controlled annealing to achieve a stiff T5 hardness temper. This robust 0.22mm format offers an exceptional balance between structural stiffness and cross-directional formability, making it the industry standard for high-performance three-piece can bodies, structural aerosol containers, deep-drawn food canisters, and rigid twist-off closures.

Engineered directly to function as a dependable and cost-effective food can material, this low-carbon steel substrate is uniformly coated with an equal 2.8/2.8 g/m² tin mass via a continuous electrolytic deposition process. This precise coating weight forms a dense, pinhole-free metallic barrier that prevents external environmental factors and internal contents from reacting with the steel core. After tinning, the material undergoes an inorganic chromium passivation treatment and is finished with a micro-layer of food-grade oil. This leaves an exceptionally flat surface layout with zero edge-wave, ensuring smooth movement through automated sheet-feed systems, scroll shears, and high-speed mechanical seaming equipment without double-sheet feed jams.

Different food products, processing facilities, and automated canning lines require specific material shapes and parameters. To support these varied requirements, we provide deep customization options for our 0.22mm T5 coils, spanning from specific structural width slicing to customized surface finishing styles. Because we manage the manufacturing sequence from the initial hot-rolled coil down to final slitting and wrapping, we can easily adapt the material configuration to match your exact production layouts.

Our manufacturing plant features computerized rotary slitters and automated tension-leveling lines. This allows us to process large continuous master coils into narrow slit bands or precise rectangular sheets according to your factory line requirements. If your packaging line requires distinct visual properties or specific printing handling, we can deliver different surface texturing styles over the 0.22mm base: highly smooth bright finishes that maximize graphic clarity, or micro-textured stone finishes that help disperse physical contact stress. Additionally, while the 2.8/2.8 g/m² equal configuration handles general canning requirements, we can provide specialized differential tin coatings for applications that require extra internal protection.

The specific physical, mechanical, and chemical design of our 0.22mm T5, 2.8/2.8g/m² tin-plated coils delivers reliable, long-term performance under demanding industrial conditions:

• Stiff T5 Temper Hardness: Provides superior column collapse strength and vertical crush resistance, ensuring that finished food containers can safely handle deep vacuum pressures and high warehousing stack loads.
• Balanced 0.22mm Structural Gauge: This specific thickness offers high structural integrity, completely preventing can-body paneling or wrinkling during high-pressure thermal processing and subsequent cooling.
• Standard 2.8/2.8 g/m² Corrosion Defense: The continuous electrolytic tin layer forms an effective chemical shield on both faces, protecting the low-carbon steel core from external rust and internal pitting during long storage lifecycles.
• Outstanding Organic Coating Adhesion: The chemically passivated surface finish exhibits high surface energy, creating an ideal foundation that allows protective internal lacquers (such as epoxy-phenolic or organosol coatings) to bond tightly without peeling.

Q1: Why is the T5 hardness temper highly recommended for a 0.22mm food can material?

A1: The T5 temper grade provides a higher mechanical hardness and yield strength (around 65 HR30T) compared to softer grades. When paired with a 0.22mm structural gauge, it delivers excellent vertical rigidity, which prevents finished container bodies from buckling under heavy mechanical pressures or paneling during high-pressure vacuum sealing and industrial processing.

Q2: Is this 0.22mm tinplate coil model fully safe and compliant for direct food packaging?

A2: Yes, absolutely. All of our electrolytic tinplate products are manufactured under strict quality controls using high-purity metallic tin and low-carbon MR-grade steel, complying fully with international food packaging safety standards. The non-toxic tin surface forms an inert chemical barrier that prevents iron migration, successfully preserving the original freshness, color, and flavor of food contents.

Q3: How does the 2.8/2.8 g/m² bright finish surface handle high-definition lithographic printing?

A3: The bright finish profile features an ultra-smooth, reflective surface processed through ground work rolls. This clean, passivated metal surface provides excellent surface tension, allowing multi-color CMYK offset printing inks and protective external gloss varnishes to adhere tightly without any ink crawling, blistering, or peeling during production and baking cycles.

Q4: What specific packaging steps are used to protect these 0.22mm coils from transport rust?

A4: To prevent any exposure to maritime humidity or ambient moisture during ocean shipping, every Tinplate Coil is wrapped securely in moisture-blocking vapor-corrosion-inhibitor (VCI) anti-rust paper. The entire assembly is then enclosed inside a robust structural steel outer shell, secured tightly with high-tensile steel bands, and mounted firmly onto reinforced, export-ready wooden skids to ensure it arrives dry and ready for production.
