Place of Origin:
China
Brand Name:
QuanJiang
Certification:
ISO9001
Model Number:
603D bottom
Contact Us

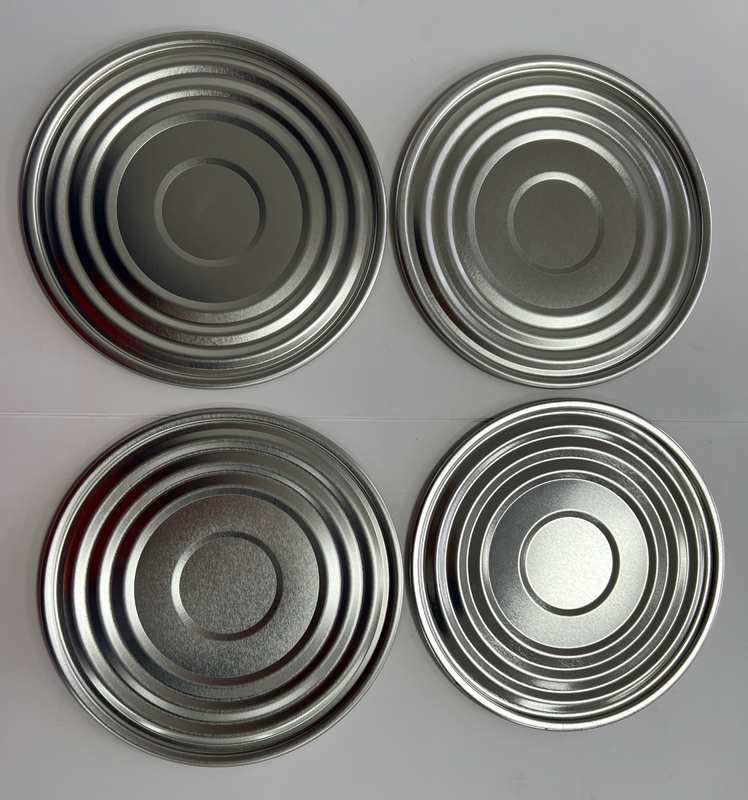

603D 153mm Bottom Ends Tinplate Tin Cover tin can bottom gold silver lid
| Model NO. | Outer Diameter(mm) | Chuck Diameter(mm) | Round edge height(mm) | Dry rubber content(mg) | ||||||
| Standard | Target | Standard | Target | Standard | Target | Standard | Tolerance | |||
| 603D | 163.60—163.85 | 163.70 | 3.10—3.30 | 3.15 | 2.00—2.20 | 2.10 | 110-130 | 95-145 | ||
| Hook side | ≥3.07((mm) | moisture(%)≤4 | Conductivity 5(Ma) per piece, not exceeding 3(Ma) on average | Depth of disk | 0.60±0.10 | |||||
| 20%CuSO4 | After soaking in 20% copper sulfate for 3 minutes, there was no obvious rust | |||||||||
| Boiling detection | After high temperature sterilization at 121℃ for 30 minutes, the inner and outer coating film has no loss of light, no foaming, no wrinkling, no whitening. | |||||||||
| antiacid | After high temperature sterilization at 121℃ for 30 minutes, the inner coating film has no peeling, peeling, obvious corrosion and blistering. | |||||||||
| Resistance to sulfur | After high temperature sterilization at 121℃ for 60 minutes, the inner coating film has no peeling, peeling, obvious corrosion and blackening. | |||||||||
| inspection of appearance | No obvious scratches, leakage coating, no oil, clean and smooth, without loss of round, no obvious deformation; Good straightness when stacked. | |||||||||
can bottom ends could be used for different content, including meat can, tomato paste can, fish can,
fruit can, and dry food. The external side printing is customizated, your logo and brand could be
shown on it. Our full specification could satisfy most of demand in metal package, customized
dimension and long term cooperation is welcome.
| Size/MM | Can Diameter/MM | Chuck Diameter/MM | Inner Coating | Outer Coating |
| 200 | 50 | 49.27 |
Clear Lacquer; Gold Lacquer; Aluminum Paste; White Coating; Buff Coating; BPA Free; |
Cear lacquer Gold Lacquer; Printing; Plain Surface; Laminating; |
| 202 | 52 | 51.99 | ||
| 300 | 73 | 72.57 | ||
| 307 | 83 | 82.96 | ||
| 401 | 99 | 98.6 | ||
| 603 | 153 | 153.04 |
Product Advantage
| 1. The tinplate material, good preservation, light protection, firmness and unique charm of metal decoration |
| 2. Fine workmanship, round edge of cover lid, not easy to hurt hands |
| 3. Beautiful appearance, good sealing |
| 4. Support customization, complete specifications |
CERTIFICATE
PACKING
Standard export packing:thin plastic film + rust-proof paper+carton+wooden pallets
