Place of Origin:
China
Brand Name:
QuanJiang
Certification:
ISO9001
Model Number:
307# 83.3mm easy open lid
Contact Us
Video
Video
Video

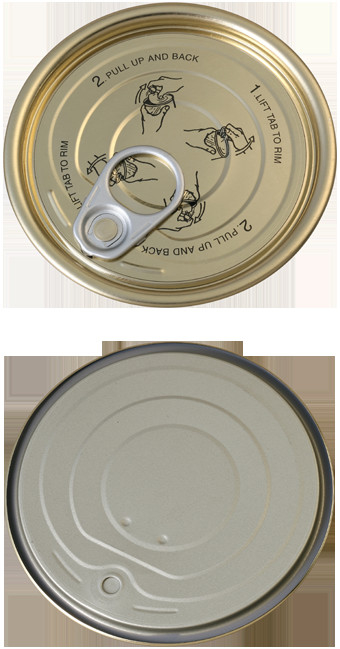

307# 83mm Easy open lid golden lacquer organosol paste tinplate metal cans lid
| Spec. | Main dimension and performance | ||||||||
| Type | Nominal Dia | External diameter | Countersink depth | Curl height | Panel depth | Dry compound | Buckle test | Pop force | Pull force |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mg) | (kPa) | (N) | (N) | |
| 307# | 83.3 | Φ93.20±0.10 | 4.63±0.10 | 2.05±0.10 | 3.90±0.10 | 70±10 | ≥200 | 12-26 | 55-85 |
Different lining lacquer used for different packed products ,
pls tell us your use before offering price .
1. Epoxy phenolic including Gold lacquer and Clear lacquer (suitable for normal food such fruit and
vegtables).
2.Organosol lacquer (suitable for acidic food such as tomato paste).
3. Aluminize lacquer (suitable for fish or meat).
| Size # | Can Diameter/mm | Chuck Diameter/mm | Internal Coating | External Coating |
| 200 | 50 | 49.27 |
Gold Lacquer; Clear Lacquer; Aluminum Paste; White Coating; Buff Coating; BPA Free; |
Gold Lacquer; Clear Lacquer; Printing; Plain Surface; Laminating; |
| 202 | 52 | 51.99 | ||
| 209 | 62 | 61.9 | ||
| 211 | 65 | 65 | ||
| 214 | 70 | 69.2 | ||
| 300 | 73 | 72.57 | ||
| 307 | 83 | 82.96 | ||
| 401 | 99 | 98.6 | ||
| 502 | 127 | 126.05 | ||
| 603 | 153 | 153.04 |
lid Production Process
PARTNER
CERTIFICATE
Information Required with orders and inquirys
Orders and inquiried shall be accompanied by the following information.
1. products name and grade
2.coaing and mass( for Tinplate only),temper grade,finish, and products size.
3.rolling direction
4.quantity
5.application and delivery date
6.number of sheets per packaging( for cut to length products)
7.inside diameter amd maximum acceptable unit coil weight (for coils products).
8.film type,color, contents,and other details of use and environment.
9.other special requirements,if any.
