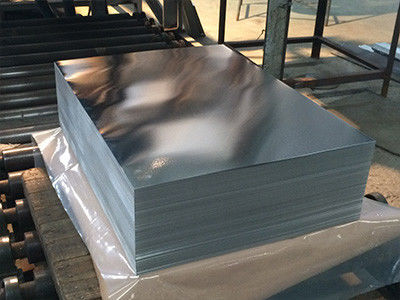

Corrosion Resistance 0.2mm Thickness DR8 Painted Tin Sheets For Metal Can Tinplate Sheets SPTE TFS

Corrosion Resistance 0.2mm Thickness DR8 Painted Tin Sheets For Metal Can Tinplate Sheets SPTE TFS

0.2mm Thickness Painted Tin Sheets

DR8 Painted Tin Sheets

SPTE TFS Painted Tin Sheets

Place of Origin:

China

Brand Name:

QuanJiang

Certification:

MILL CERTIFICATE

Model Number:

MR TINPLATE

Contact Us

Request A Quote
Product Details
Hardness::
TS230, TS245, TS260, TS275, TS290, TH415, TH435, TH520, TH550, TH580, TH620
Temper::
BA CA
Package::
Iron Guard With Fumigation Wooden Pallet
Material::
MR Prime Tinplate/ Tin Free Steel
Thickness::
0.15-0.45mm
Tin Coating::
1.1/1.1, 2.8/2.8,5.6/5.6, Etc. Or Customerized
Surface::
Bright,Stone,Matte, Sliver, Rough Stone
Application::
Aerosol Can, Sardines Can, Tuna Can , Vergetabl Can, Fruit Can Paint Can
Width::
600-1050mm
Inside::
Anti-rust
Outside::
Printed
Usage::
Making Metal Packaging
Payment & Shipping Terms
Minimum Order Quantity
25tons
Price
Negotiated
Packaging Details
rust-proof paper+metal cover+metal angles+straps+pallet
Delivery Time
negotiated
Payment Terms
T/T
Supply Ability
50000MT/Month
Product Description

Corrosion Resistance 0.2mm Thickness DR8 Painted Tin Sheets For

Metal Can Tinplate Sheets SPTE TFS

TINPLATE

TINPLATE

Tinplate is a thin steel coated with tin. Tinplate is characterized by its beautiful metallic luster as well as excellent properties in corrosion resistance, solderability and weldability.

TIN FREE STEEL (TFS)

TIN FREE STEEL( TFS)

TFS is electrolytic chromium coated steel, which has a superior paintability and paint adhesion. Since TFS has an excellent sulfide stain resistance, it can be applied to food usage with inside coating.

Corrosion Resistance 0.2mm Thickness DR8 Painted Tin Sheets For Metal Can Tinplate Sheets SPTE TFS 0

Corrosion Resistance 0.2mm Thickness DR8 Painted Tin Sheets For Metal Can Tinplate Sheets SPTE TFS 1

1.ETP



Former Coating

Designation

Coating Weight

Code

Nominal Coating

Weight(g/m2)

Minimum Average Coating weight(g/m2)





Equally Coated

10# 1.1/1.1 1.1/1.1 0.9/0.9
20# 2.2/2.2 2.2/2.2 1.8/1.8
25# 2.8/2.8 2.8/2.8 2.5/2.5
50# 5.6/5.6 5.6/5.6 5.2/5.2
75# 8.4/8.4 8.4/8.4 7.8/7.8
100# 11.2/11.2 11.2/11.2 10.1/10.1







Differentially Coated

25#/10# 2.8/1.1 2.8/1.1 2.5/0.9
50#/10# 5.6/1.1 5.6/1.1 5.2/0.9
50#/25# 5.6/2.8 5.6/2.8 5.2/2.5
75#25# 8.4/2.8 8.4/2.8 7.8/2.5
75#50# 8.4/5.6 8.4/5.6 7.8/5.2
100#/25# 11.2/2.8 11.2/2.8 10.1/2.5
100#/50# 11.2/5.6 11.2/5.6 10.1/5.2
100#/75# 11.2/8.4 11.2/8.4 10.1/7.8

2. TFS

Metallic Chromium Layer(one side) Chromium Oxide Layer(one side)

Minimum Average

Coating Weight

Maximum Average

Coating Weight

Minimum Average

Coating Weight

Maximum Average

Coating Weight

50mg/m² 150mg/m² 5mg/m² 35mg/m²
Corrosion Resistance 0.2mm Thickness DR8 Painted Tin Sheets For Metal Can Tinplate Sheets SPTE TFS 2

Application:

Tinplate is widely used for the packaging of products. Such as food cans,

beverage cans, pet cans, closures,general line cans and so on.

Classification Main Applications
Food Cans Cans for preserved food Preserved fishery and agricultural products, etc.
Cans for beverages Juice, carbonated soft drinks, other beverages, etc.
General Cans 4L Cans Automobile oil, mechanical oil, etc.
18L Cans Industrial containers for paint and oils
Pail Cans Industrial containers for paint and oils
Aerosol Cans Cosmetics, butane gas, pesticide, etc.
Crown Crown Caps Liquor, soft drink bottle caps

Corrosion Resistance 0.2mm Thickness DR8 Painted Tin Sheets For Metal Can Tinplate Sheets SPTE TFS 3Corrosion Resistance 0.2mm Thickness DR8 Painted Tin Sheets For Metal Can Tinplate Sheets SPTE TFS 4

Production Process

Corrosion Resistance 0.2mm Thickness DR8 Painted Tin Sheets For Metal Can Tinplate Sheets SPTE TFS 5

HONOR CERTIFICATE

Corrosion Resistance 0.2mm Thickness DR8 Painted Tin Sheets For Metal Can Tinplate Sheets SPTE TFS 6



FAQ

1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;



2.what can you buy from us?
   Printed Tinplate,Tinplate LID,Tin plate sheet,Tinplate coil



3.why should you buy from us not from other suppliers?
  Technical team leader who worked as superior engineers in Japan Fuji Tinplate-printing

  enterprise more than 21 years;
  Five full automatic newest FUJI micro-HD full colors Iron-printing Lines;
  Long-terms good relationship with famous tin mills.



4. what services can we provide?
   Accepted Delivery Terms: FOB,
   Accepted Payment Currency:USD,CNY;
   Accepted Payment Type: T/T.


Language Spoken:English,Chinese
