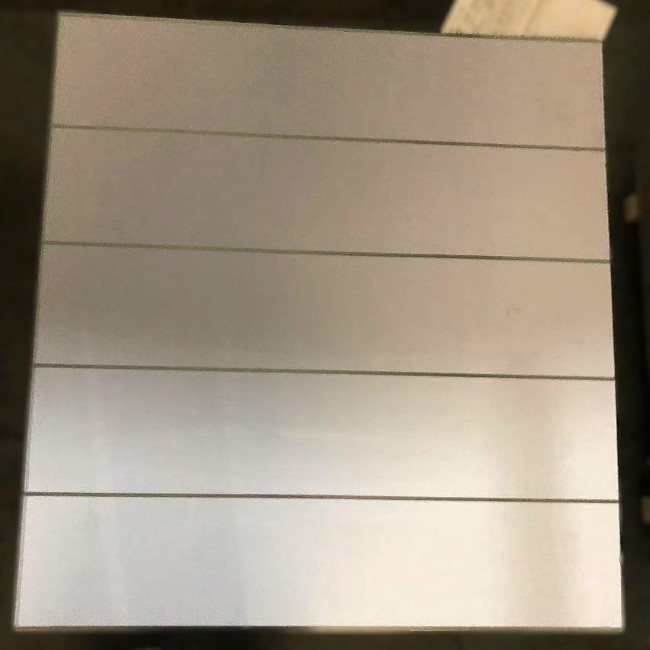

Printed Electrolytic Tinplate Sheets For Food Tin Can With Excellent Corrosion Resistance

Printed Electrolytic Tinplate Sheets For Food Tin Can With Excellent Corrosion Resistance

Excellent Corrosion Resistance Electrolytic Tinplate Sheets

Printed Electrolytic Tinplate Sheets

Food Tin Can Electrolytic Tinplate Sheets

Place of Origin:

China

Brand Name:

QuanJiang

Certification:

SGS, Mill certificate

Model Number:

MR,SPCC lithographic

Contact Us

Request A Quote
Product Details
Material::
TINPLATE SPTE/TFS
Hardness::
T1,T2,T3,T4,T5,DR7,DR8,DR9,TH550,TH520
Type::
Coil Or Sheet
Temper::
TS230, TS245, TS260,TS275, TS290,TH415,TH435, TH520, TH550, TH580, TH620
Thickness::
0.14-0.5mm
Tin Coating::
1.1/1.1, 2.8/2.8,5.6/5.6, Etc. Or Customerized
Surface::
Bright,Stone,Matte, Sliver, Rough Stone
Width::
600-1050mm
Inside::
Anti-rust
Outside::
Printed
Application::
Sardine Can, Tuna Can, Food Can, Fruit Can, Bean Can
Package::
Iron Guard With Fumigation Wooden Pallet
Payment & Shipping Terms
Minimum Order Quantity
25tons
Price
Negotiated
Packaging Details
rust-proof paper+metal cover+metal angles+straps+pallet
Delivery Time
negotiated
Payment Terms
T/T
Supply Ability
50000MT/Month
Product Description

Printed Electrolytic Tinplate Sheets for Food Tin Can with Excellent Corrosion Resistance

Material and structure:
1. Substrate: The stampable thin steel plate is used as the substrate, which has good strength and processing performance and can meet the stamping, bending and other forming requirements in the production process of food cans.
2. Tin-plated layer: The tin film is evenly plated on the steel plate substrate through the electrolytic process. The thickness of the tin layer is thin and uniform, and can be precisely controlled according to different food packaging requirements.
Performance characteristics:
1. Excellent corrosion resistance: In the inner wall of a food can filled with a complex mixture (or in a weak acid solution) and with a certain vacuum, the potential of tin is lower than that of the matrix material iron. Tin is the anode, and its dissolution protects the iron; while its outer wall is in the atmospheric solution, and the tin-plated layer is in a cathodic protection state, with sufficient chemical stability, which can effectively prevent the inner and outer walls of the food can from being corroded.
2. High sanitation and safety: The tin layer itself is harmless to the human body. During the food packaging process, it can prevent iron from dissolving into the food and causing the food to change its taste, ensuring the safety and hygiene of the food.
3. Good printing adaptability: The surface is flat and smooth, easy to print, and can achieve exquisite patterns and text printing, which can enhance the appearance and brand promotion effect of food cans.
4. Good processing performance: It has good ductility and lubricity, can withstand harsh processing processes such as stamping, stretching, bending, etc., and can be made into food cans of various shapes and sizes.
Application field:
Mainly used in the manufacture of food cans, such as canned fruit, canned meat, canned vegetables, beverage cans, etc. It can effectively extend the shelf life of food and maintain the flavor and quality of food.



Mirror/Matt Finished Electrolytic Tinplate Sheet/ Coil

Product: Tinplate sheet, tinplate coil, tinplate strip
Material: MR, SPCC
Thickness & tolerance: 0.14-0.5mm (tolerance -/+0.01 mm)
Width & tolerance: Above 600mm-1200mm (tolerance -0/+3 mm)
Temper: T1,T2,T3,T4,T5,DR7,DR8,DR9,TH550,TH520
Surface finish: Bright, Stone, Silver, Matte
Payment terms: T/T;
Packing: Seaworthy packing
Delivery: 30 days after advanced deposit
Appliations: Food cans, beverage cans, aerosol cans, cosmetics, paint cans, chemicals cans, storage cans, battery,stationery, etc

Application:

Tinplate is widely used for the packaging of products. Such as food cans,

beverage cans, pet cans, closures,general line cans and so on.

Classification Main Applications
Food Cans Cans for preserved food Preserved fishery and agricultural products, etc.
Cans for beverages Juice, carbonated soft drinks, other beverages, etc.
General Cans 4L Cans Automobile oil, mechanical oil, etc.
18L Cans Industrial containers for paint and oils
Pail Cans Industrial containers for paint and oils
Aerosol Cans Cosmetics, butane gas, pesticide, etc.
Crown Crown Caps Liquor, soft drink bottle caps
Others Electronic Components Electronic items such as TV, tuner cases, etc.
Electronic Jar Electronic items such as electric cookers, etc.
Others Other shell of batteries, toys, stationeries, etc.

PRINTING TINPLATE Show

Printed Electrolytic Tinplate Sheets For Food Tin Can  With Excellent Corrosion Resistance 0

Printed Electrolytic Tinplate Sheets For Food Tin Can  With Excellent Corrosion Resistance 1




Printed Electrolytic Tinplate Sheets For Food Tin Can  With Excellent Corrosion Resistance 2

Production Process

Printed Electrolytic Tinplate Sheets For Food Tin Can  With Excellent Corrosion Resistance 3

Printed Electrolytic Tinplate Sheets For Food Tin Can  With Excellent Corrosion Resistance 4

Printed Electrolytic Tinplate Sheets For Food Tin Can  With Excellent Corrosion Resistance 5

CERTIFICATE

Printed Electrolytic Tinplate Sheets For Food Tin Can  With Excellent Corrosion Resistance 6
