Place of Origin:
China
Brand Name:
QuanJiang
Certification:
GB
Model Number:
TFS
Contact Us

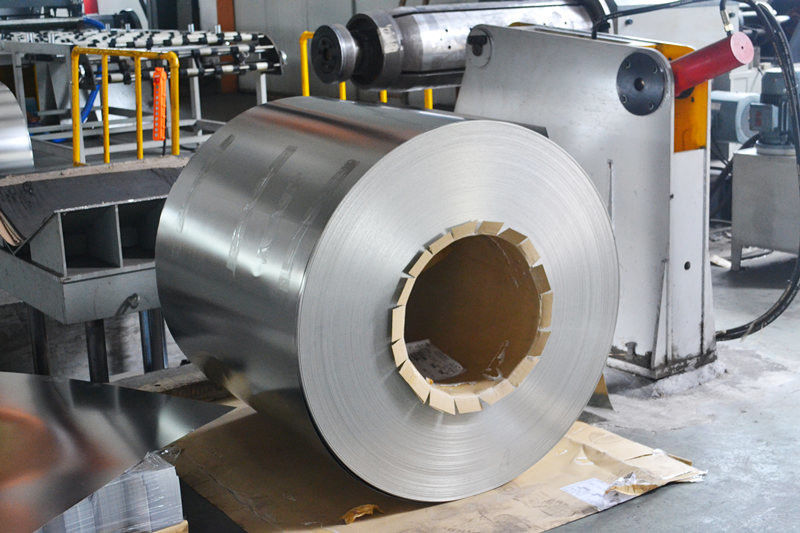

Tin Plate TFS Tin Free Steel Tinplate Sheet for
Can Cap Food Packing
Electrolytic Tin Plate English Abbreviations: spte. It refers to cold rolled low
carbon thin steel plate or steel strip coated with commercial pure tin on both sides.
Due to its good sealing, preservation, light avoidance, firmness and unique
metal decoration charm, Electrolytic Tin Plate packaging has a wide coverage
in the packaging container industry, and is a universal packaging variety in the
world.
Because of its strong anti-oxidation, various styles and exquisite printing,
Electrolytic Tin Plate packaging container is deeply loved by customers,
widely used in food packaging, pharmaceutical packaging, daily necessities
packaging, instrument packaging, industrial packaging and so on.
Tinplate Features |
Excellent Corrosion Resistance By selecting a proper coating weight, appropriate corrosion resistance is obtained against container contents. |
Excellent Paintability & Printability Printing is beautifully finished using various lacquers and inks. |
Excellent Solderability & Weldability TIN PLATE is widely used for making various types of cans by soldering or welding. |
Excellent Formability & Strength By selecting a proper temper grade, appropriate formability is obtained for various applications as well as the required strength after forming. |
Beautiful Appearance Electrolytic ETP is characterized by its beautiful metallic luster. Products with various kinds of surface roughness are produced by selecting the surface finish of the substrate steel sheet. |
Different Features between TFS and ETP
Appearance
Even when the same surface finish as ETP is applied to
the substrate steel sheet, it provides the unique surface
luster characteristic of metallic chromium.
Corrosion resistance
As it has excellent corrosion resistance after painting,
it is generally used with both surfaces painted. It can
also be used with the internal surface unpainted,
depending on the contents.
Solderability
TFS is not compatible with soldering.
Weldability
Although TFS can be welded when the metallic coating
layers are removed, its weldability is inferior to ETP.
Coating weights
Unlike the multiplicity of coating weights with tin,
only one standardized chromium-coated product
is manufactured.
Applications of Tinplate and TFS |
ETP is primarily used for packaging foodstuffs and beverages, but it is also used in containers for oils, grease, paints, polishes, chemicals and many other products. Aerosol containers and caps and closures are also made from ETP. |
TFS are most frequently used for can tops, screw and lug caps, snap and press-on closures and shallow-drawn food cans |
PARTNER
Honor CERTIFICATE
Information Required with orders and inquirys
Orders and inquiried shall be accompanied by the following information.
1. products name and grade
2.coaing and mass( for Tinplate only),temper grade,finish, and products size.
3.rolling direction
4.quantity
5.application and delivery date
6.number of sheets per packaging( for cut to length products)
7.inside diameter amd maximum acceptable unit coil weight (for coils products).
8.film type,color, contents,and other details of use and environment.
9.other special requirements,if any.
