Premium T3 Grade Continuous Annealing Electrolytic Tin Plate Coils for Food Packaging

Premium T3 Grade Continuous Annealing Electrolytic Tin Plate Coils for Food Packaging

Place of Origin:

China

Brand Name:

QuanJiang

Certification:

SGS, Mill certificate

Model Number:

TINPLATE T3

Contact Us

Request A Quote
Product Details
Width::
600~1050mm
Material::
MR,SPCC,prime Tinplate / TFS
Hardness::
TS230, TS245, TS260, TS275, TS290, TH415, TH435, TH520, TH550, TH580, TH620
Surface::
Bright,Stone,Silver ,Matte
Type::
Tinplate Sheet Or Tinplate Coil
Temper::
T1, T2, T3, T4, T5, DR8,DR7,DR9
Thickness::
0.18-0.48mm (tolerance -/+0.01 Mm)
Length:
600mm-1200mm Or As Coils
Tin Coating::
1.1/1.1; 2.2/2.2; 2.8/2.8; 5.6/5.6;2.0/2.0; 2.8/5.6g/m2
Application::
Aerosol Can, Sardines Can, Tuna Can , Vergetabl Can, Fruit Can ,paint Can
Package::
Standard Export Package
Payment & Shipping Terms
Minimum Order Quantity
25tons
Price
Negotiated
Packaging Details
Seaworthy Standard with wooden pallet, corner protected. iron guard packing. or as customer's requirement.
Delivery Time
negotiated
Payment Terms
T/T
Supply Ability
50000MT/Month
Product Description

Premium T3 Grade Continuous Annealing Electrolytic Tin Plate Coils for Food Packaging

QuanJiang's T3 Grade Continuous Annealing Electrolytic Tin Plate (ETP) Coils represent the pinnacle of food packaging material technology. These SGS-certified coils undergo advanced continuous annealing processes that enhance their structural integrity and corrosion resistance, making them ideal for demanding applications including aerosol cans, seafood packaging, and vegetable containers. The MR grade steel base ensures consistent quality and performance.

Key Features & Characteristics

✔ Superior Annealing Technology – Continuous annealing process ensures uniform hardness and enhanced formability
✔ Excellent Corrosion Resistance – Electrolytic tin coating provides exceptional protection against acidic contents
✔ Premium Material Quality – MR grade steel base with consistent mechanical properties
✔ Versatile Applications – Suitable for various food packaging needs from aerosols to fish cans
✔ Customizable Options – Available in multiple thicknesses, coatings, and surface finishes

Technical Advantages

  • Enhanced Formability: T3 temper rating ensures excellent deep drawing capabilities

  • Consistent Performance: Continuous annealing provides uniform material properties throughout coils

  • Food Safety Compliance: Meets international standards for food contact materials

  • Production Efficiency: Optimized for high-speed can manufacturing processes

  • Quality Assurance: Rigorous testing ensures defect-free material delivery

Technical Specifications

Parameter Specifications
Material Grade MR Prime Steel
Thickness Range 0.18–0.48mm (±0.01mm)
Width Options 600–1050mm
Tin Coating 1.1/1.1 – 5.6/5.6 g/m²
Temper Grade T3 (57±3 HR30T)
Surface Finishes Bright, Stone, Silver, Matte
Coil Dimensions ID: 508/610mm; OD: 1000-1250mm
Certifications SGS, Mill Certificate, ISO 9001

Applications

  • Aerosol containers and spray cans

  • Seafood packaging (tuna, sardines)

  • Vegetable and fruit cans

  • Paint and chemical containers

  • General line food cans

Premium T3 Grade Continuous Annealing Electrolytic Tin Plate Coils for Food Packaging 0Premium T3 Grade Continuous Annealing Electrolytic Tin Plate Coils for Food Packaging 1

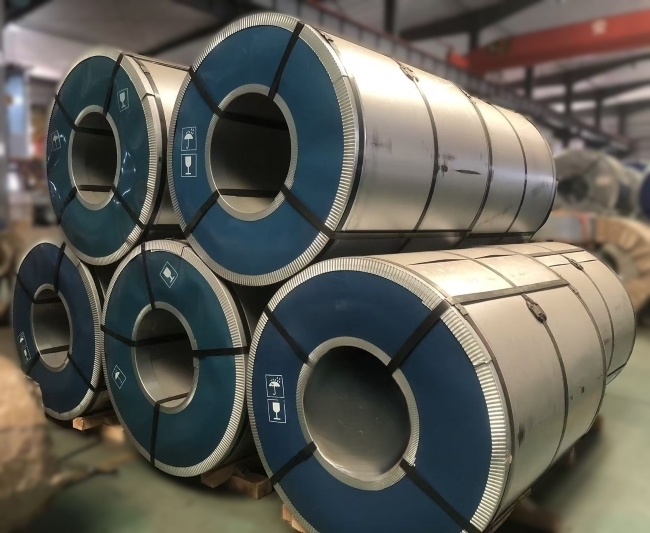

Electrolytic Tin Plate Show

Premium T3 Grade Continuous Annealing Electrolytic Tin Plate Coils for Food Packaging 2

Premium T3 Grade Continuous Annealing Electrolytic Tin Plate Coils for Food Packaging 3

Premium T3 Grade Continuous Annealing Electrolytic Tin Plate Coils for Food Packaging 4

FAQ

Q: What is the advantage of continuous annealing?
A: Continuous annealing provides more uniform mechanical properties and better surface quality compared to batch annealing.

Q: Why choose T3 temper for food packaging?
A: T3 temper offers the perfect balance of formability and strength required for most food can applications.

Q: Can you provide custom coating weights?
A: Yes, we offer customized coating options from 1.1/1.1 to 5.6/5.6 g/m², including differential coatings.

Q: What is the lead time for orders?
A: Typically 30-45 days after order confirmation, depending on quantity and specifications.

Q: Do you provide technical support?
A: Yes, we offer comprehensive technical support including material selection guidance and processing recommendations.
