Electrolytic Tin Plate Sheets For Making Food Cans With Excellent Corrosion Resistance

Electrolytic Tin Plate Sheets For Making Food Cans With Excellent Corrosion Resistance

Making Food Cans Electrolytic Tin Plate

Food Cans Electrolytic Tin Plate

Excellent Corrosion Resistance Electrolytic Tin Plate

Place of Origin:

China

Brand Name:

QuanJiang

Certification:

MILL CERTIFICATE

Model Number:

T3BA T4BA tinplate

Contact Us

Request A Quote
Product Details
Hardness::
TS230, TS245, TS260, TS275, TS290, TH415, TH435, TH520, TH550, TH580, TH620
Temper::
T1, T2, T3, T4, T5, DR8,DR7,DR9
Type::
Sheet Or Coils
Thickness::
0.15mm-0.45 Mm
Tin Coating::
1.1/1.1,2.0/2.0,2.2/2.2, 2.8/2.8,5.6/5.6, Etc. Or Customerized
Surface::
Bright,Stone,Silver ,Matte
Use::
Food Packing Metal Tin Cans Lids Tinplate Bottom Cap Ends
Width::
600~1000mm,or Customzied
Length::
600-1000mm, Coils Or Customzied
Package::
Iron Guard With Fuming Wooden Pallet
Payment & Shipping Terms
Minimum Order Quantity
25 tons
Price
Negotiated

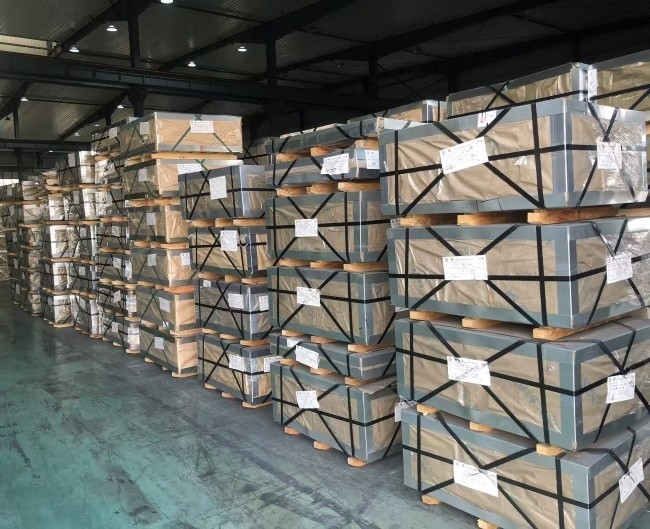

Packaging Details
Seaworthy Standard with wooden pallet, corner protected. by sheet or coils according customer's requires.
Delivery Time
Negotiated
Payment Terms
T/T
Supply Ability
50000MT/Month
Product Description

Electrolytic Tin Plate Sheets for Making Food Cans with Excellent Corrosion Resistance

Basic composition:
       With a stampable thin steel plate as the substrate, tin is plated on its surface through an electroplating process to form a steel product with a multi-layer protective film.
Principle of corrosion resistance:
       In the inner wall of a food can filled with a complex mixture (or in a weak acid solution) and with a certain vacuum, the potential of tin is lower than that of the base material iron. Tin is the anode, and its dissolution protects the iron; and during the shelf life of the food can, the amount of tin dissolved is basically harmless to the human body. When the outer wall of the can is in an atmospheric solution, the tin coating is in a cathodic protection state and has sufficient chemical stability.
Advantages of production process:
       It is produced by electroplating process, with high productivity, low cost, thin and uniform coating, different coating thicknesses can be produced, and single-sided or double-sided plating can be performed. Compared with the hot-dip method, the thickness of the tin coating is uniform and easy to control, and the amount of tin consumed is less.
Performance characteristics:
  1. Excellent corrosion resistance: It can effectively prevent the corrosion of steel plates by acidic substances in food and extend the shelf life of food cans.
  2. Non-toxic and tasteless: ensure that no harmful substances are released when in contact with food, ensuring food safety.
  3. Surface gloss: beautiful appearance, easy to print and decorate, and enhance the market appeal of the product.
  4. Light weight and high strength: relative to paper, wood, composite materials, etc., it has higher strength and lighter weight, which is convenient for transportation and storage.
  5. Easy to print, weld and process: it can be easily processed with various surface treatments and printing, and it is easy to weld and process into food cans of different shapes.
  6. Strong adaptability to ambient temperature: under different ambient temperature conditions, the performance is stable and can adapt to the storage and transportation requirements of food.
Application areas: more than 70% of the total output is used for food and beverage packaging, such as various meat, fish, fruit, vegetable and other food cans, as well as beverage cans, etc.



Application:

Tinplate is widely used for the packaging of products. Such as food cans,

beverage cans, pet cans, closures,general line cans and so on.

Classification Main Applications
Food Cans Cans for preserved food Preserved fishery and agricultural products, etc.
Cans for beverages Juice, carbonated soft drinks, other beverages, etc.
General Cans 4L Cans Automobile oil, mechanical oil, etc.
18L Cans Industrial containers for paint and oils
Pail Cans Industrial containers for paint and oils
Aerosol Cans Cosmetics, butane gas, pesticide, etc.
Crown Crown Caps Liquor, soft drink bottle caps
Others Electronic Components Electronic items such as TV, tuner cases, etc.
Electronic Jar Electronic items such as electric cookers, etc.
Others Other shell of batteries, toys, stationeries, etc.



PRODUCT Prime tinplate
STANDARD BS EN 10202, DIN EN 10203, GB/T2520 , JIS G3303
MATERIAL MR SPCC
Grade Prime
Annealing BA,CA
THICKNESS 0.18-0.45mm
WIDTH 600-1050mm
TEMPER T2, T2.5, T3, T3.5, T4,T5 ,DR7,DR7M,DR8
COATING: 2.8g/2.8g, 5.6g/5.6g, 2.8/5.6,2.0/2.0 gr/m² or according to customer's requirement
FINISHS: . Bright,Silver,Stone, Matte
PACKINGS: export packing. Or according to customer's requirements.
MOQ 25 tons
DELIVERY 15-30 days after payment

Electrolytic Tin Plate Sheets For Making Food Cans With Excellent Corrosion Resistance 0


Electrolytic Tin Plate Sheets For Making Food Cans With Excellent Corrosion Resistance 1Electrolytic Tin Plate Sheets For Making Food Cans With Excellent Corrosion Resistance 2

Electrolytic Tin Plate Sheets For Making Food Cans With Excellent Corrosion Resistance 3
Electrolytic Tin Plate Sheets For Making Food Cans With Excellent Corrosion Resistance 4
Electrolytic Tin Plate Sheets For Making Food Cans With Excellent Corrosion Resistance 5
lid Production Process

Electrolytic Tin Plate Sheets For Making Food Cans With Excellent Corrosion Resistance 6

PARTNER

Electrolytic Tin Plate Sheets For Making Food Cans With Excellent Corrosion Resistance 7

FAQ
1. Q: What is your payment term?
A: T/T, L/C, D/P, Western Union, PayPal available now, and we are flexible for different payment terms.
2. Q: How long is the delivery time?
A: 10 days ready for shipment if stock available; 20 to 25 days for new production orders.
3. Q: Can you provide samples?
A: Yes, our samples are free of charge by a reasonable margin.
4. Q: What is your term of delivery?
A: FOB, CFR, CIF, CIP, DDU, DDP available, others could be discussed.
5. Q: Can you provide customized printing and coating?
A: Yes, printing and coating customization are available; printing samples provided before ordering available.
6. Q: Can you produce can component according to our design?
A: Yes, size customization is available, new molds could be prepared free of charge as per negotiated.
7. Q: Can we have our special packing and label?
A: Customized packing method and label details are accepted; Our normal packing by brown bags or
   cartons, fixed on fumigation wooden pallets.
8. Q: Can you provide chucks?
A: Yes, chucks for Easy Open Ends, Bottom ends and Peel off Ends are free of charge; Chucks for
  other can components are negotiatable.
9. Q: Can we inspect goods before shipment?
A: Yes, pictures of products, packing and loading will be provided each shipment. Besides, we welcome
    inspection by your own people or Third Party Inspection Company. Special inspection certification can
    be provided according to your requirement.
10. Q: Do you work with long-term or yearly contract?
A: Yes, we welcome long-term contract including 6 months or 1 year period, we can fix price and arrange
   partial shipment according to your requirement.
