Place of Origin:
CHINA
Brand Name:
QuanJiang
Certification:
Q/BQB 450-2009
Model Number:
MR 0.20mm-0.35mm tinplate
Contact Us
Video
Video
Video

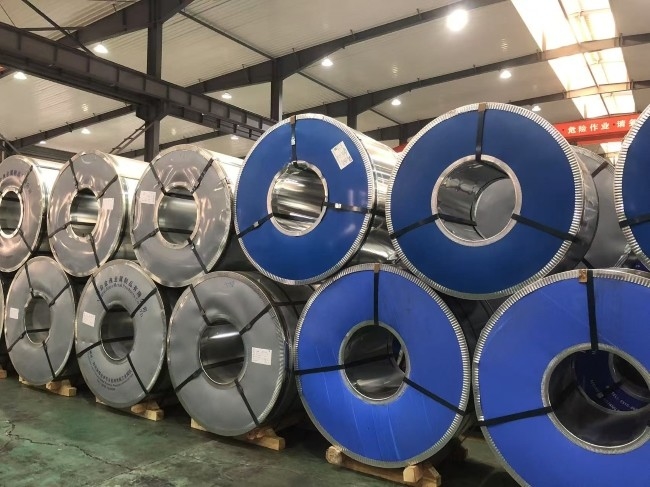

Electrolytic Tin Plate for Food Packaging 0.20mm-0.35mm Thickness 885mm Width
Applications of Tinplate and TFS
ETP is primarily used for packaging foodstuffs and beverages, but it is also used in containers for oils,
grease, paints, polishes, chemicals and many other products. Aerosol containers and caps and closures
are also made from ETP.
TFS are most frequently used for can tops, screw and lug caps, snap and press-on closures and
shallow-drawn food cans.
| tinplate sheet or tinplate coil | |
| STANDARD | BS EN 10202, DIN EN 10203, GB/T2520 , JIS G3303 |
| MATERIAL | MR ,SPCC |
| Grade | Prime |
| Annealing: | BA CA |
| SIZE | thickness:0.15-0.5mm |
| width :600-1050mm | |
| TEMPER | T2,T3,T4,T5, DR7,DR8,DR9 |
| FINISH | Stone,Bright,Silver,Matt |
| PACKING | Standard export packing. or according to customer's requirements. |
| MOQ | 50 tons |
| DELIVERY | 15-20 days after payment |
| PAYMENT | T/T |
| SEAPORT | China port |
| Advantages of Tinplate Cans in Food packaging | |
|
Hygienic |
|
| Safe
Low weight and high strength make food cans easy to ship and store. |
|
|
Eco-friendly |
| Q/BQB 450-2009 | JIS G3303:2008 | ASTM A623M-08 | DIN EN 10202:201 | ISO 11949:1995 | GB/T 2520-2008 | GB/T 2520-2000 | |
| Single cold-reduced | - | T-1 | T-1(T49) | TS230 | TH50+SE | T-1 | TH50+SE |
| T1.5 | - | - | - | - | T-1.5 | - | |
| T-2 | T-2 | T-2(T53) | TS245 | TH52+SE | T-2 | TH52+SE | |
| T-2.5 | T-2.5 | - | TS260 | TH55+SE | T-2.5 | TH55+SE | |
| T-3 | T-3 | T-3(T57) | TS275 | TH57+SE | T-3 | TH57+SE | |
| T-3.5 | - | - | TS290 | - | T-3.5 | - | |
| T-4 | T-4 | T-4(T61) | TH415 | TH61+SE | T-4 | TH61+SE | |
| T-5 | T-5 | T-5(T65) | TH435 | TH65+SE | T-5 | TH65+SE | |
| Double cold-reduced | DR-7M | - | DR-7.5 | TH520 | - | DR-7M | - |
| DR-8 | DR-8 | DR-8 | TH550 | T550+SE | DR-8 | T550+SE | |
| DR-8M | - | DR-8.5 | TH580 | T580+SE | DR-8M | T580+SE | |
| DR-9 | DR-9 | DR-9 | TH620 | T620+SE | DR-9 | T620+SE | |
| DR-9M | DR-9M | DR-9.5 | - | T660+SE | DR-9M | T660+SE | |
| DR-10 | DR-10 | - | - | T690+SE | DR-10 | T690+SE |
Application:
Tinplate is widely used for the packaging of products. Such as food cans,
beverage cans, pet cans, closures,general line cans and so on.
| Classification | Main Applications | |
| Food Cans | Cans for preserved food | Preserved fishery and agricultural products, etc. |
| Cans for beverages | Juice, carbonated soft drinks, other beverages, etc. | |
| General Cans | 4L Cans | Automobile oil, mechanical oil, etc. |
| 18L Cans | Industrial containers for paint and oils | |
| Pail Cans | Industrial containers for paint and oils | |
| Aerosol Cans | Cosmetics, butane gas, pesticide, etc. | |
| Crown | Crown Caps | Liquor, soft drink bottle caps |
| Others | Electronic Components | Electronic items such as TV, tuner cases, etc. |
| Electronic Jar | Electronic items such as electric cookers, etc. | |
| Others | Other shell of batteries, toys, stationeries, etc. | |
PARTNER
Information Required with orders and inquirys
Orders and inquiried shall be accompanied by the following information.
1. products name and grade
2.coaing and mass( for Tinplate only),temper grade,finish, and products size.
3.rolling direction
4.quantity
5.application and delivery date
6.number of sheets per packaging( for cut to length products)
7.inside diameter amd maximum acceptable unit coil weight (for coils products).
8.film type,color, contents,and other details of use and environment.
9.other special requirements,if any.
