Place of Origin:
China
Brand Name:
QuanJiang
Certification:
SGS, Mill certificate
Model Number:
0.15mm 0.16mm-0.4mm tinplate
Contact Us
Video
Video
Video
High-Grade Electrolytic Tin Plate Weldability for Making Food Cans Beverage Cans and More
Material properties
1. Electrolytic tin plate: This is a material that is plated with a tin layer on a metal substrate (usually a steel plate) by electrolysis. The electrolytic process enables the tin layer to be evenly distributed on the surface of the substrate, ensuring the consistency of material properties. The thickness of the tin layer can be controlled according to specific needs, which is very important for the manufacture of food cans and beverage cans.
2. High quality: high purity and less impurities, which can better play the excellent properties of tin. Secondly, the quality of the substrate may also be high, such as good flatness and mechanical properties, which can facilitate subsequent processing.
Welding performance
Weldability is a key advantage of this electrolytic tin plate, which can ensure the sealing of the can body and prevent food or beverage leakage.
Application advantages
1. Applicability for food and beverage packaging: For food cans, it can provide good protection. The tin layer can prevent the acidic and alkaline components in the food from chemically reacting with the metal substrate. For example, when packaging acidic foods such as ketchup, the tin layer can effectively block the corrosion of the can body by the acidic substances in the ketchup, thereby extending the shelf life of the food. For beverage cans, it can also prevent the ingredients in the beverage (such as carbonic acid in carbonated beverages) from damaging the can body, and can maintain the quality and taste of the beverage.
2. Safety and hygiene: Since tin is a relatively non-toxic metal, it is safer to use in food and beverage packaging. In addition, high-grade electrolytic tin plates may undergo strict quality control during the production process, meet the hygiene standards of food packaging, and ensure the hygiene and safety of the packaging contents.
3. Appearance and processing performance: The surface of this material is usually smooth and has good appearance quality, which is conducive to subsequent processing operations such as printing and decoration, and can enhance the visual appeal of the product. At the same time, its mechanical properties also make it easy to perform can body forming processes such as stamping and curling.
lectrolytic Tin Plate Description
| PRODUCT | Prime tinplate |
| STANDARD | BS EN 10202, DIN EN 10203, GB/T2520 , JIS G3303 |
| MATERIAL | MR SPCC |
| Grade | Prime |
| Annealing | BA,CA |
| THICKNESS | 0.18-0.45mm |
| WIDTH | 600-1050mm |
| TEMPER | T2, T2.5, T3, T3.5, T4,T5 ,DR7,DR7M,DR8 |
| COATING: | 2.8g/2.8g, 5.6g/5.6g, 2.8/5.6,2.0/2.0 gr/m² or according to customer's requirement |
| FINISHS: . | Bright,Silver,Stone, Matte |
|
PACKINGS:
|
export packing. Or according to customer's requirements. |
| MOQ | 25 tons |
| DELIVERY | 15-30 days after payment |
| Parameters | |||||
| Product | Thickness | Thickness Tolerance | Width | Width Tolerance | Length |
| Crown Cork | 0.230mm | 0.227mm~0.231mm | 907mm | 906mm~908mm | 1018mm |
| 0.235mm | 0.232mm~0.236mm | 907mm | 906mm~908mm | 1018mm | |
| 0.240mm | 0.237mm~0.240mm | 907mm | 906mm~908mm | 1018mm | |
| Food Can | 0.180mm | 0.175mm~0.180mm | 710mm~930mm | +1 | |
| 0.190mm | 0.185mm~0.190mm | 710mm~930mm | +1 | ||
| 0.200mm | 0.195mm~0.200mm | 710mm~930mm | +1 | ||
| Food Can Ends | 0.200mm | 0.195mm~0.200mm | 800mm | +1 | |
| Beverage Can | 0.200mm | 0.195mm~0.200mm | 710mm~930mm | +1 | |
| Beverage Can Ends | 0.190mm | 0.190mm~0.193mm | 880mm | +1 | |
| Lnk Can | 0.22mm~0.280mm | ±0.005mm | 710mm~930mm | +1 | |
| Screw Cap | 0.160mm | 0.155mm~0.160mm | 710mm~930mm | +1 | |
| 0.160mm | 0.155mm~0.160mm | 710mm~930mm | +1 | ||
| Cable Wrapping | 0.130mm | 0.130mm~0.135mm | 610mm~910mm | +1 | |
| 0.130mm | 0.150mm~0.155mm | 610mm~910mm | +1 | ||
E

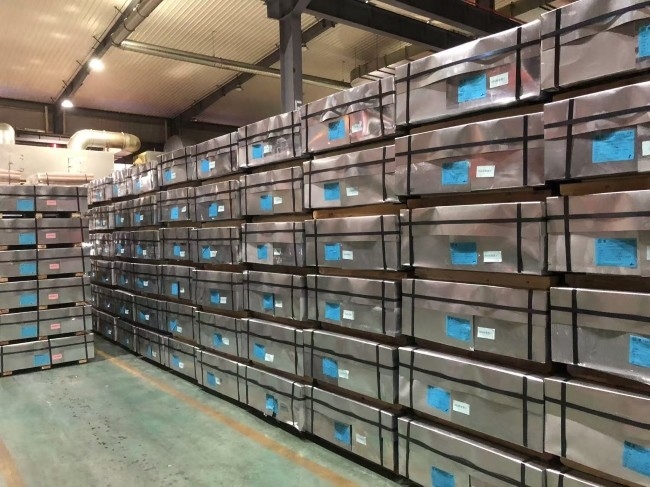

TINPLATE WORKSHOP SHOW
OUR COMPANY
Shanghai Quanjiang Industrial Co.,ltd is a large-scale enterprise integrating manufacturing and sales
( international export). Established in 2001. With an area of more than 40 000 square meters. It's located
in Shanghai,China, We has advanced production equipment, equipped with pushing machine, press, large
heat treatment furnace,chamfering machine,sawing machine, sawing machine,large sandblasting machine
and other key equipment and a variety of testing instruments.
Printing Wokshop Process
CERTIFICATE
