Place of Origin:
China
Brand Name:
QuanJiang
Certification:
ISO9001
Model Number:
401# 99mm EOE lid
Contact Us
Video
Video
Video

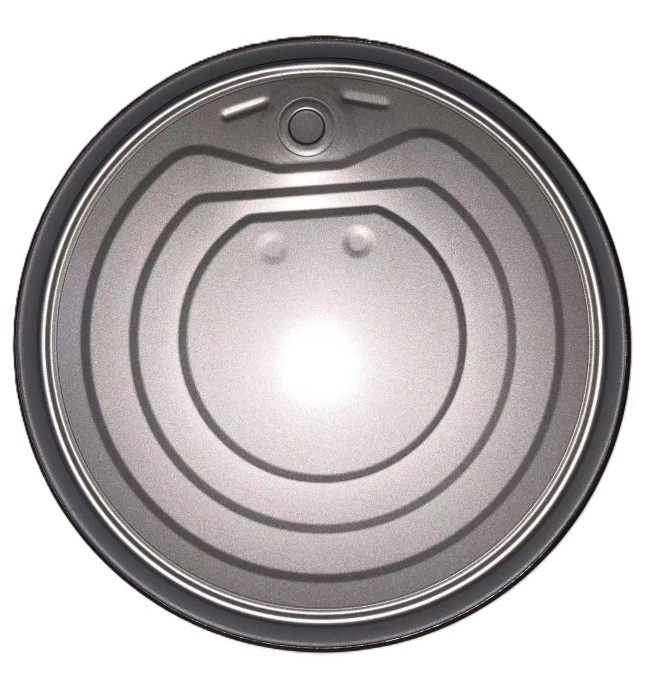

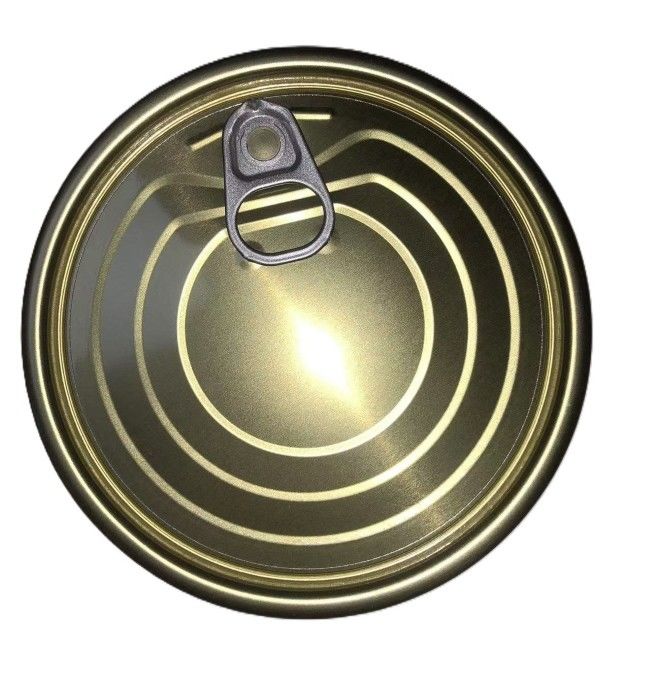

#401 Rust Resistance TFS Material 99mm Diameter Golden Easy Open EOE For Food Cans
| Spec. | Main dimension and performance | ||||||||
| Type | Nominal Dia | External diameter | Countersink depth | Curl height | Panel depth | Dry compound | Buckle test | Pop force | Pull force |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mg) | (kPa) | (N) | (N) | |
| 401# | 98.9 | Φ108.85±0.10 | 4.83±0.10 | 2.05±0.10 | 3.90±0.10 | 83±10 | ≥180 | 12-26 | 55-85 |
| item | 401# 99mm diameter |
| Metal Type | MR prime TINPLATE |
| Place of Origin | China |
| Brand Name | Quanjiang |
| Usage | food cans |
| Product name | Normal end 200# tinplate lid |
| Material | Grade Tinplate |
| Shape | Round Shape |
| Color | Silver, gloden, clear lacqure,white aluminum paste |
| Diameter | 50 mm |
| Printing | CMYK 4 Color Offset Printing |
| Logo | Customized Logo |
| Sample | Freely |
| Product parameters of EOE round lid | |||||||||
| Spec. | Main dimension and performance | ||||||||
| Type | Nominal Dia | External diameter | Countersink depth | Curl height | Panel depth | Dry compound | Buckle test | Pop force | Pull force |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mg) | (kPa) | (N) | (N) | |
| 202# | 52.3 | Φ61.20±0.10 | 3.85±0.10 | 1.85±0.10 | 3.30±0.10 | 42±6 | ≥240 | 12-26 | 45-75 |
| 209# | 62.5 | Φ72.15±0.10 | 4.75±0.10 | 1.90±0.10 | 4.05±0.10 | 50±7 | ≥240 | 12-26 | 45-75 |
| 214# | 69.9 | Φ79.15±0.10 | 4.80±0.10 | 1.95±0.10 | 3.90±0.10 | 58±8 | ≥240 | 12-26 | 45-75 |
| 300# | 72.9 | Φ82.15±0.10 | 4.80±0.10 | 1.95±0.10 | 3.90±0.10 | 60±8 | ≥240 | 12-26 | 45-75 |
| 305# | 80.3 | Φ90.15±0.10 | 4.80±0.10 | 2.05±0.10 | 3.90±0.10 | 68±9 | ≥200 | 12-26 | 55-85 |
| 307# | 83.3 | Φ93.20±0.10 | 4.63±0.10 | 2.05±0.10 | 3.90±0.10 | 70±10 | ≥200 | 12-26 | 55-85 |
| 309# | 86.7 | Φ96.45±0.10 | 4.00±0.10 | 2.05±0.10 | 4.00±0.10 | 78±10 | ≥180 | 12-26 | 85-120 |
| 315# | 95.5 | Φ105.45±0.10 | 4.83±0.10 | 2.05±0.10 | 3.90±0.10 | 80±10 | ≥180 | 12-26 | 55-85 |
| 401# | 98.9 | Φ108.85±0.10 | 4.83±0.10 | 2.05±0.10 | 3.90±0.10 | 83±10 | ≥180 | 12-26 | 55-85 |
| 403# | 102.4 | Φ112.15±0.10 | 3.90±0.10 | 2.05±0.10 | 3.90±0.10 | 92±10 | ≥120 | 12-26 | 85-120 |
LID PROCESS
Application of Tinplate
PARTNER
FAQ
Q:Can you send samples?
A:Of course, we can send samples to all parts of the world, our samples are free, but
customers need to bear the courier costs.
Q:What product information do I need to provide?
A:You need to provide the grade, width, thickness, coating and the number of tons
you need to purchase.
Q:What are the shipping ports?
A:Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo
ports, you can choose other ports according to your needs.
Q:About product prices?
A:Prices vary from period to period due to cyclical changes in the price of raw materials.
Q:What are the certifications for your products?
A:We have ISO 9001, SGS, EWC and other certifications.
Q:How long does your delivery time take?
A:In general, our delivery time is within 30-45 days, and may be delayed if the demand
is extremely large or special circumstances occur.
Q:Can I go to your factory to visit?
A:Of course, we welcome customers from all over the world to visit our factory. However,
some of the plants are not open to the public.
Q:Does the product have quality inspection before loading?
A:Of course, all our products are strictly tested for quality before packaging, and
unqualified products will be destroyed.
Q:How to pack the products?
A:The inner layer has a waterproof paper outer layer with iron packaging and is
fixed with a fumigation wooden pallet. It can effectively protect products from
corrosion during ocean transportation.
Q:What is your working time?
A:In general, our online service time is Beijing time: 8:00-5:30, after 5:30, we will
reply to your inquiry during the next working day.
Send your inquiry directly to us
