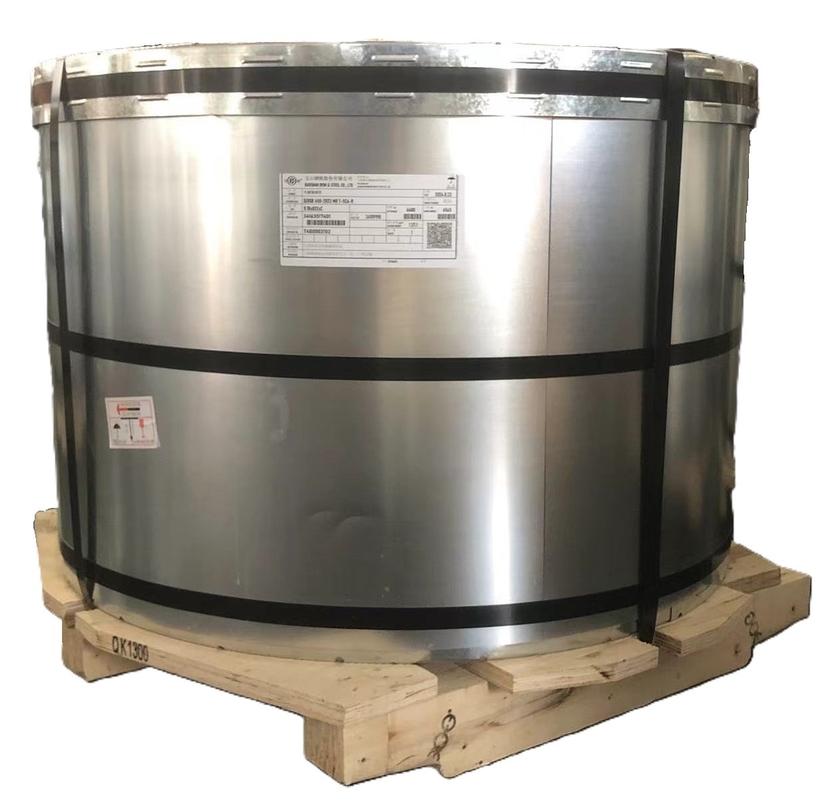

2.8/5.6 Tin Coating Tinplate Coil for Long Lasting Durability ETP/TFS SHEETS
Features
1, Protective performance: The tin layer provides protection for the steel plate, preventing it from coming into direct contact with the external environment. For packaging and other application scenarios, it can resist erosion factors such as oxygen and moisture in the air, thereby protecting the internal items. In terms of food packaging, it can prevent food from reacting with iron, ensuring the quality and safety of food.
2,Appearance characteristics: It has a bright metallic appearance, which makes tinplate coils advantageous in the manufacture of some products that require appearance. For example, when making food cans and beverage cans, the bright surface can enhance the visual appeal of the product.
3,Processing performance: Tinplate coils have good processing properties, such as stamping, bending, and forming. It can be easily processed into containers of various shapes, which can meet the shape requirements of different products in industrial production.
The long-lasting durability of ETP
The long-lasting durability of ETP steel plates mainly comes from its tin coating. The tin layer can remain intact for a long time under normal conditions, providing continuous protection for the steel plate. In long-term storage applications such as food packaging, it can prevent corrosion of the steel plate even after a long time, ensuring the integrity of the packaging and the quality of the internal products.
Long-lasting durability of TFS
Although the chromate passivation film of TFS steel plate is relatively thin, it can also provide long-term anti-rust protection under suitable conditions. In some product packaging that does not require extremely high anti-rust, TFS steel plate can maintain good condition during the shelf life and meet the packaging and storage needs of the product.
| Product | Tinplate Sheet |
| Standard | ASTM A623, EN 10203, GB2520-2000,JISG3303-2002 and DINEN10202-2001 |
| Material | MR SPCC |
| Thickness | 0.15- 0.45mm (tolerance -/+0.01 mm) |
| Width | 700~1050mm (Tolerance: 0~3mm) or |
| Cutting Length | 700~1150mm (Tolerance: 0~3mm) or as coils |
| Annealing | BA & CA |
| Temper | T1 T2 T3 T4 T5 DR7 DR8 DR9 TH550 TH580 TH620 TH660 |
| Tin Coating | 1.1/1.1 2.0/2.0 2.8/2.8 2.8/5.6 5.6/5.6 8.4/8.4 11.2/11.2 g/㎡ |
| Surface finish | Bright, Stone, Silver, Matt |
| Coil Diameter | ID 420/ 508/610mm, OD from 1,000 to 1,250m |
| Coil Weight | 3~10 MT |
| Package | Seaworthy Standard with wooden pallet, corner protected. by sheet or coils according customer's requires. |
| Applications | Metal package usage like paint, chemical can,aerosol can and different food can production, Also battery,electric cable and other industries |
