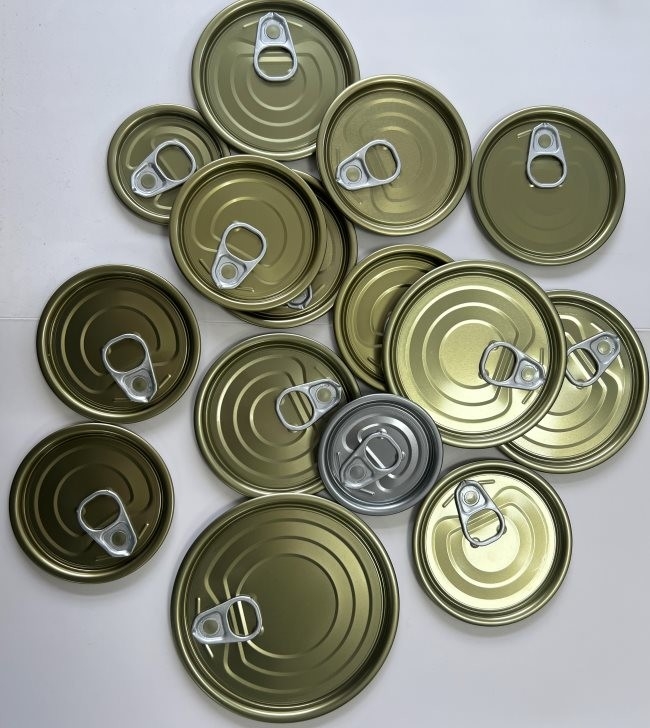

401 Diameter 99mmTinplate Lid rust resistance for Easy Open Round Lid EOE Cans
401 99mm diameter tinplate cover is rust resistance and suitable for easy-open round cover EOE cans. It has the characteristics of excellent material, precise size, wide application range and easy-open design. It is an ideal packaging accessory.
1. Material characteristics
This tinplate cover is made of high-quality tinplate material, with good sealing and strength, and can effectively protect the contents of the can. At the same time, the cover has been treated with rust prevention, which greatly improves its durability and corrosion resistance, ensuring that it can maintain a good condition in various environments and extend the service life of the product.
2. Size specifications
The standardized size design makes the cover and the can body tightly combined and not easy to loosen, effectively preventing external factors such as air and moisture from entering the can, ensuring the quality and safety of the contents in the can.
3. Scope of application
It is suitable for easy-open round cover EOE cans and is widely used in food, beverage, chemical and other industries. For products that need to be sealed and preserved, such as canned food, beverages, coatings, etc., this tinplate cover can provide reliable sealing performance to ensure that the product is not damaged during transportation and storage.
4. Easy-open design
The easy-open design is adopted to facilitate users to open. This design not only improves the user experience, but also reduces the trouble and danger during the opening process. Whether it is home use or commercial packaging, the easy-open design can bring great convenience to users.
| Spec. | Main dimension and performance | ||||||||
| Type | Nominal Dia | External diameter | Countersink depth | Curl height | Panel depth | Dry compound | Buckle test | Pop force | Pull force |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mg) | (kPa) | (N) | (N) | |
| 401# | 98.9 | Φ108.85±0.10 | 4.83±0.10 | 2.05±0.10 | 3.90±0.10 | 83±10 | ≥180 | 12-26 | 55-85 |
| item | 401# 99mm diameter |
| Metal Type | MR prime TINPLATE |
| Place of Origin | China |
| Brand Name | Quanjiang |
| Usage | food cans |
| Product name | Normal end 200# tinplate lid |
| Material | Grade Tinplate |
| Shape | Round Shape |
| Color | Silver, gloden, clear lacqure,white aluminum paste |
| Diameter | 50 mm |
| Printing | CMYK 4 Color Offset Printing |
| Logo | Customized Logo |
| Sample | Freely |
LID PROCESS
| Product parameters of EOE round lid | |||||||||
| Spec. | Main dimension and performance | ||||||||
| Type | Nominal Dia | External diameter | Countersink depth | Curl height | Panel depth | Dry compound | Buckle test | Pop force | Pull force |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mg) | (kPa) | (N) | (N) | |
| 202# | 52.3 | Φ61.20±0.10 | 3.85±0.10 | 1.85±0.10 | 3.30±0.10 | 42±6 | ≥240 | 12-26 | 45-75 |
| 209# | 62.5 | Φ72.15±0.10 | 4.75±0.10 | 1.90±0.10 | 4.05±0.10 | 50±7 | ≥240 | 12-26 | 45-75 |
| 214# | 69.9 | Φ79.15±0.10 | 4.80±0.10 | 1.95±0.10 | 3.90±0.10 | 58±8 | ≥240 | 12-26 | 45-75 |
| 300# | 72.9 | Φ82.15±0.10 | 4.80±0.10 | 1.95±0.10 | 3.90±0.10 | 60±8 | ≥240 | 12-26 | 45-75 |
| 305# | 80.3 | Φ90.15±0.10 | 4.80±0.10 | 2.05±0.10 | 3.90±0.10 | 68±9 | ≥200 | 12-26 | 55-85 |
| 307# | 83.3 | Φ93.20±0.10 | 4.63±0.10 | 2.05±0.10 | 3.90±0.10 | 70±10 | ≥200 | 12-26 | 55-85 |
| 309# | 86.7 | Φ96.45±0.10 | 4.00±0.10 | 2.05±0.10 | 4.00±0.10 | 78±10 | ≥180 | 12-26 | 85-120 |
| 315# | 95.5 | Φ105.45±0.10 | 4.83±0.10 | 2.05±0.10 | 3.90±0.10 | 80±10 | ≥180 | 12-26 | 55-85 |
| 401# | 98.9 | Φ108.85±0.10 | 4.83±0.10 | 2.05±0.10 | 3.90±0.10 | 83±10 | ≥180 | 12-26 | 55-85 |
| 403# | 102.4 | Φ112.15±0.10 | 3.90±0.10 | 2.05±0.10 | 3.90±0.10 | 92±10 | ≥120 | 12-26 | 85-120 |
Application of Tinplate
