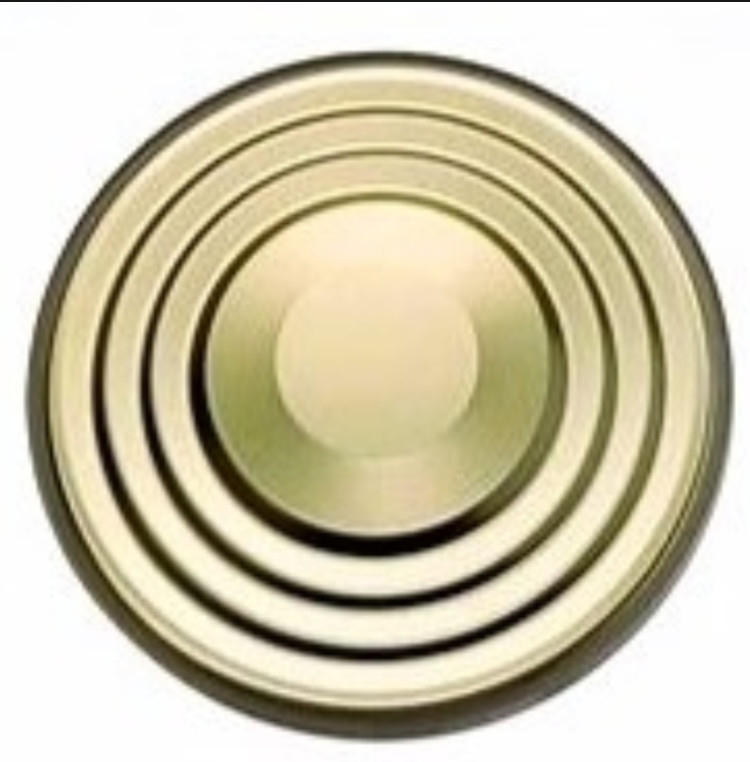

Food Packaging Tinplate Lid 603 for Dia 153mm Round Bottle End
Model 603 tinplate round bottom lid for food packaging is a packaging material widely used in food packaging, daily necessities, chemical packaging and other fields.It is usually made of tin-plated steel sheet or tin-free steel, with excellent rust and corrosion resistance, and can effectively protect the quality and freshness of food. It has three characteristics of durability, good sealing and corrosion resistance.In general, the 603 model tinplate round bottom cover plays a vital protective role in food packaging, ensuring the safety and quality of food during storage and transportation.
| Model NO. | Outer Diameter(mm) | Chuck Diameter(mm) | Round edge height(mm) | Dry rubber content(mg) | ||||||
| Standard | Target | Standard | Target | Standard | Target | Standard | Tolerance | |||
| 603 bottom | 163.60—163.85 | 163.70 | 3.10—3.30 | 3.15 | 2.00—2.20 | 2.10 | 110-130 | 95-145 | ||
| Hook side | ≥3.07((mm) | moisture(%)≤4 | Conductivity 5(Ma) per piece, not exceeding 3(Ma) on average | Depth of disk | 0.60±0.10 | |||||
| 20%CuSO4 | After soaking in 20% copper sulfate for 3 minutes, there was no obvious rust | |||||||||
| Boiling detection | After high temperature sterilization at 121℃ for 30 minutes, the inner and outer coating film has no loss of light, no foaming, no wrinkling, no whitening. | |||||||||
| antiacid | After high temperature sterilization at 121℃ for 30 minutes, the inner coating film has no peeling, peeling, obvious corrosion and blistering. | |||||||||
| Resistance to sulfur | After high temperature sterilization at 121℃ for 60 minutes, the inner coating film has no peeling, peeling, obvious corrosion and blackening. | |||||||||
Product Show
| MODEL | Can diameter | Chuck Diameter | Inside coating | Outside coating |
| 200# | 49.5mm |
gold coating aluminum coating (BPA-NI is available) |
gold coating plain printed |
|
| 202# | 52.3mm | 52mm | ||
| 209# | 62.3mm | |||
| 300# | 72.9mm | 73mm | ||
| 307# | 83.3mm | 83mm | ||
| 401# | 98.9mm | 99mm | ||
| 603# | 153.4mm | 153mm |
Lid Production Process
FAQ
Q:Can you send samples?
A:Of course, we can send samples to all parts of the world, our samples are free, but customers need to
bear the courier costs.
Q:What product information do I need to provide?
A:You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.
Q:What are the shipping ports?
A:Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can choose
other ports according to your needs.
Q:About product prices?
A:Prices vary from period to period due to cyclical changes in the price of raw materials.
Q:What are the certifications for your products?
A:We have ISO 9001, SGS, EWC and other certifications.
Q:How long does your delivery time take?
A:In general, our delivery time is within 30-45 days, and may be delayed if the demand is extremely large
or special circumstances occur.
Q:Can I go to your factory to visit?
A:Of course, we welcome customers from all over the world to visit our factory. However, some of the
plants are not open to the public.
Q:Does the product have quality inspection before loading?
A:Of course, all our products are strictly tested for quality before packaging, and unqualified products
will be destroyed.
