ETP TFS Weldable Electrolytic Tin Plate 600 - 1050mm For Food Beverage Artistic Barrel

ETP TFS Weldable Electrolytic Tin Plate 600 - 1050mm For Food Beverage Artistic Barrel

Artistic Barrel Electrolytic Tin Plate

Weldable Electrolytic Tin Plate

Food Beverage Barrel ETP Tinplate

Brand Name:

QUANJIANG

Contact Us

Request A Quote
Product Details
Coil Weight:
3-8MT
Tinplate Type:
Sheets Or Coil
Thickness:
0.15-0.50mm
Width:
600-1050mm
Temper 2:
TS230, TS245, TS260, TS275, TS290, TH415, TH435, TH520, TH550, TH580, TH620
Material:
Prime Tinplate Or Tin Free Steel (TFS)
Surface:
Bright, Stone, Silver, Matte
Features 1:
Corrosion Resistance, Solderability , Weldability, Heat Resistance
Payment & Shipping Terms
Minimum Order Quantity
25 TONS
Packaging Details
thin plastic film + rust-proof paper+metal cover+metal angles+straps+fuming wooden pallet
Delivery Time
30days
Product Description

Product Description:

Electrolytic Tin Plate, also known as TFS or tinplate, is a cold-rolled low-carbon steel sheet or strip coated with commercial pure tin on both sides. With a thickness ranging from 0.15mm to 0.50mm, ETP can be manufactured in a variety of temper grades, such as TS230, TS245, TS260, TS275, TS290, TH415, TH435, TH520, TH550, TH580, TH620. It is also available with different tin coatings, including 2.0/2.0, 2.8/2.8, 5.6/5.6 and 8.4/8.4. ETP can be annealed by either box annealing (BA) or continuous annealing (CA) and is usually supplied in widths from 600mm to 1050mm.

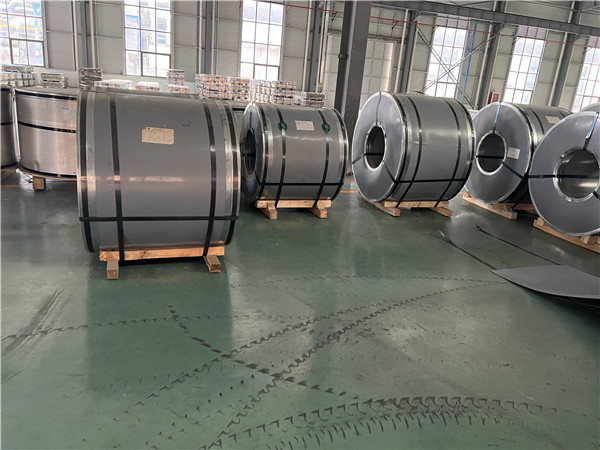

ETP TFS Weldable Electrolytic Tin Plate 600 - 1050mm For Food Beverage Artistic Barrel 0ETP TFS Weldable Electrolytic Tin Plate 600 - 1050mm For Food Beverage Artistic Barrel 1

Features:

  • Product Name: Electrolytic Tin Plate (ETP)
  • Features : Sulphur Blackening Resistance, Alkali Resistance, Rust Resistance
  • Annealing: Box Annealing(BA) & Continuous Annealing(CA)
  • Packing: Iron Guard With Fuming Wooden Pallet
  • Temper 2 : TS230, TS245, TS260, TS275, TS290, TH415, TH435, TH520, TH550, TH580, TH620
  • Material: Prime Tinplate Or Tin Free Steel (TFS)


Applications:

Classification Main Applications
Food Cans Cans for preserved food Preserved fishery and agricultural products, etc.
Cans for beverages Juice, carbonated soft drinks, other beverages, etc.
General Cans 4L Cans Automobile oil, mechanical oil, etc.
18L Cans Industrial containers for paint and oils
Pail Cans Industrial containers for paint and oils
Aerosol Cans Cosmetics, butane gas, pesticide, etc.
Crown Crown Caps Liquor, soft drink bottle caps
Others Electronic Components Electronic items such as TV, tuner cases, etc.
Electronic Jar Electronic items such as electric cookers, etc.
Others Other shell of batteries, toys, stationeries, etc.


Technical Parameters:

Parameter Value
Tinplate type Sheets Or Coil
Temper 2 TS230, TS245, TS260, TS275, TS290, TH415, TH435, TH520, TH550, TH580, TH620
Temper 1 T2, T3, T4,T5,,DR7,DR8,DR9,DR10
Coil Weight 3-8MT
Material Prime Tinplate Or Tin Free Steel (TFS)
Application Food Can, Beverage Can, Paint Can, Chemical Can
Tin Coating 2.0/2.0, 2.8/2.8, 5.6/5.6,8.4/8.4
Width 600-1050mm
Surface Bright, Stone, Silver, Matte
Thickness 0.15-0.50mm


Customization:

Customized Electrolytic Tin Plate Services

We provide customized electrolytic tin plate (ETP) services, with QUANJIANG as our brand name. We provide prime tinplate or tin free steel (TFS) with thickness ranging from 0.15 to 0.50mm. The surfaces can be bright, stone, silver or matte. We provide box annealing (BA) and continuous annealing (CA) services. The length ranges from 600 to 1100mm. Delivery time is within 30 days.

Our ETP steel has a wide range of applications in many industries such as food and beverage packaging, aerosol cans, paint cans, industrial containers, and general metal packaging.



Support and Services:

Technical Support and Services for Electrolytic Tin Plate

We offer comprehensive technical support and services for Electrolytic Tin Plate products. Our experts are available to answer your questions about product specifications, installation, and troubleshooting. We also provide a range of additional services, including product training, repair, and maintenance.

We are committed to providing the highest level of customer service and satisfaction. If you have any questions or concerns about our technical support and services, please don't hesitate to contact us. We look forward to helping you get the best results from your Electrolytic Tin Plate products.



Packing and Shipping:

Packaging and Shipping

Electrolytic Tin Plate should be packaged appropriately to ensure it is protected and safe during transport. Generally, they are packaged in a vacuum-sealed plastic film and then placed in a cardboard box for shipping. Alternatively, they can also be packed in a metal or wooden pallet with a plastic film to avoid any damage from outside forces.
