Place of Origin:
China
Brand Name:
QuanJiang
Certification:
SGS, Mill certificate
Model Number:
603# 153mm tin cover
Contact Us

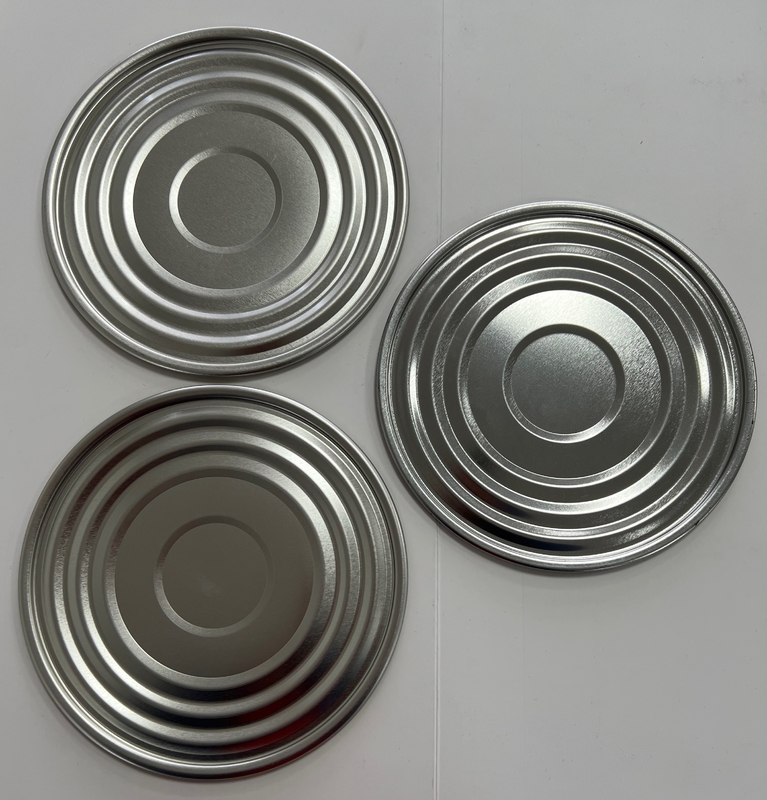

Tin Can Lids Professional Manufacture Food For Cookies milk Tin Can coverf
Model NO. | Outer Diameter(mm) | Chuck Diameter(mm) | Round edge height(mm) | Dry rubber content(mg) | ||||||
Standard | Target | Standard | Target | Standard | Target | Standard | Tolerance | |||
603D | 163.60—163.85 | 163.70 | 3.10—3.30 | 3.15 | 2.00—2.20 | 2.10 | 110-130 | 95-145 | ||
Hook side | ≥3.07((mm) | moisture(%)≤4 | Conductivity 5(Ma) per piece, not exceeding 3(Ma) on average | Depth of disk | 0.60±0.10 | |||||
20%CuSO4 | After soaking in 20% copper sulfate for 3 minutes, there was no obvious rust | |||||||||
Boiling detection | After high temperature sterilization at 121℃ for 30 minutes, the inner and outer coating film has no loss of light, no foaming, no wrinkling, no whitening. | |||||||||
antiacid | After high temperature sterilization at 121℃ for 30 minutes, the inner coating film has no peeling, peeling, obvious corrosion and blistering. | |||||||||
Resistance to sulfur | After high temperature sterilization at 121℃ for 60 minutes, the inner coating film has no peeling, peeling, obvious corrosion and blackening. | |||||||||
inspection of appearance | No obvious scratches, leakage coating, no oil, clean and smooth, without loss of round, no obvious deformation; Good straightness when stacked. |
Advantages of Tinplate cans in Food Packaging. | |
Health | Supply excellent and non-toxic barrier properties to protect food products from impurities, bacteria, moisture, light, and odours. |
Safe | Light and high strength make food cans easy to ship and store. |
Environmental | Recyclability and significant cost benefits compares with alumium. |
MODEL | Can diameter | Chuck Diameter | Inside coating | Outside coating |
200# | 49.5mm |
gold coating aluminum coating (BPA-NI is available) |
gold coating plain printed |
|
202# | 52.3mm | 52mm | ||
300# | 72.9mm | 73mm | ||
307# | 83.3mm | 83mm | ||
401# | 98.9mm | 99mm | ||
603# | 153.4mm | 153mm |
LID WORKSHOP
OUR COMPANY
Shanghai Quanjiang Industrial Co.,ltd is a large-scale enterprise integrating manufacturing and sales
( international export). Established in 2001. With an area of more than 40 000 square meters. It's
located in Shanghai,China, We has advanced production equipment, equipped with pushing
machine, press, large heat treatment furnace,chamfering machine,sawing machine,large
sandblasting machine and other key equipment and a variety of testing instruments.
