Place of Origin:
China
Brand Name:
QuanJiang
Certification:
ISO9001
Model Number:
200#
Contact Us
| SHANGHAI QUANJIANG TEST STANDARD FOR CONTROL OF COVER | ||||||||||
| Model NO. | Outer Diameter(mm) | Chuck Diameter(mm) | Round edge height(mm) | Dry rubber content(mg) | ||||||
| Standard | Target | Standard | Target | Standard | Target | Standard | Tolerance | |||
| 200D | 58.85—59.00 | 58.90 | 3.05-3.20 | 3.1 | 1.80—2.00 | 1.90 | 35-45 | 30-50 | ||
| Hook side | ≥3.07((mm) | moisture(%)≤4 | Conductivity 5(Ma) per piece, not exceeding 3(Ma) on average | Depth of disk | 0.60±0.10 | |||||
| 20%CuSO4 | After soaking in 20% copper sulfate for 3 minutes, there was no obvious rust | |||||||||
| Boiling detection | After high temperature sterilization at 121℃ for 30 minutes, the inner and outer coating film has no loss of light, no foaming, no wrinkling, no whitening. | |||||||||
| antiacid | After high temperature sterilization at 121℃ for 30 minutes, the inner coating film has no peeling, peeling, obvious corrosion and blistering. | |||||||||
| Resistance to sulfur | After high temperature sterilization at 121℃ for 60 minutes, the inner coating film has no peeling, peeling, obvious corrosion and blackening. | |||||||||
| inspection of appearance | No obvious scratches, leakage coating, no oil, clean and smooth, without loss of round, no obvious deformation; Good straightness when stacked. | |||||||||

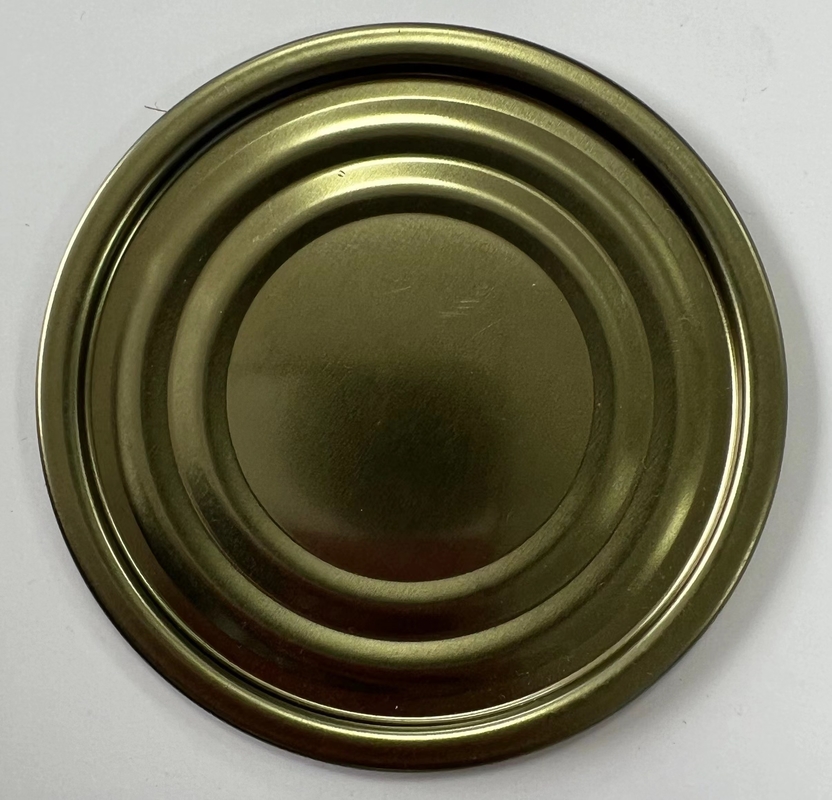

Product Show
SR series : Small round tin can (less than 5L)
L=little D=seaming chuck diameter DP=seaming chuck depth
| 1L round tin can | |
| 104*11.2 | SR-1L-D104*DP11.2 |
| 106*4.8 | SR-1L-D106*DP4.8 |
| 107*3.5 | SR-1L-D107*DP3.5 |
| 108*3.5 | SR-1L-D108*DP3.5 |
| 2L round tin can | |
| 127*3.5 | SR-2L-D127*DP3.5 |
| 3L round tin can | |
| 142*11.5 | SR-3L-D142*DP11.5 |
| 147*9 | SR-3L-D147*DP9 |
| 148.8*11.3 | SR-3L-D148*DP11.3 |
| 149*9.5 | SR-3L-D148*DP9.5 |
| 151.5*8 | SR-3L-D151.5*DP8 |
| 152*3.5 | SR-3L-D152*DP3.5 |
| 155*8 | SR-3L-D155*DP8 |
| 4L round tin can | |
| 158*10.5 | SR-4L-D158*DP10.5 |
| 159.3*3.5 | SR-4L-D159.3*DP3.5 |
| 163*8 | SR-4L-D163*DP8 |
| 165*4.5 | SR-4L-D165*DP4.5 |
| 5L round tin can | |
| 176*3.2 | SR-4L-D176*DP3.2 |
LID WORKSHOP SHOW
OUR COMPANY
Shanghai Quanjiang Industrial Co., Ltd. was founded in 2001 and is located in Yuepu Industrial Park,
Baoshan District, Shanghai, with an area of about 40 000 square meters.
Quanjiang has a number of well-known customer groups in China, including
Wong Lo Kat, Lulu, Red Bull, Want Want, Beingmate, Nestle, Yili and Xing Hua Lou.
Relying on a good service platform, Quanjiang exports its tinplates and
printing products to the USA, France, Italy, Vietnam, Thailand, Uganda, Netherlands, Russia, etc.
In the new concept of “Quality First”, We are to seek for mutual benefit and win-win.
Welcome to contact us!
FAQ
Q:Can you send samples?
A:Of course, we can send samples to all parts of the world, our samples are free, but customers
need to bear the courier costs.
Q:What product information do I need to provide?
A:You need to provide the grade, width, thickness, coating and the number of tons you need
to purchase.
Q:What are the shipping ports?
A:Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you
can choose other ports according to your needs.
Q:About product prices?
A:Prices vary from period to period due to cyclical changes in the price of raw materials.
Q:What are the certifications for your products?
A:We have ISO 9001, SGS, EWC and other certifications.
Q:How long does your delivery time take?
A:In general, our delivery time is within 30-45 days, and may be delayed if the demand is
extremely large or special circumstances occur.
Q:Can I go to your factory to visit?
A:Of course, we welcome customers from all over the world to visit our factory. However,
some of the plants are not open to the public.
Q:Does the product have quality inspection before loading?
A:Of course, all our products are strictly tested for quality before packaging, and unqualified
products will be destroyed.
Q:How to pack the products?
A:The inner layer has a waterproof paper outer layer with iron packaging and is fixed with a
fumigation wooden pallet. It can effectively protect products from corrosion during ocean
transportation.
Q:What is your working time?
A:In general, our online service time is Beijing time: 8:00-5:30, after 5:30, we will reply to
your inquiry during the next working day.
