Place of Origin:
China
Brand Name:
QuanJiang
Certification:
MILL CERTIFICATE
Model Number:
MR SPTE ETP TFS
Contact Us
Video
Video
Video

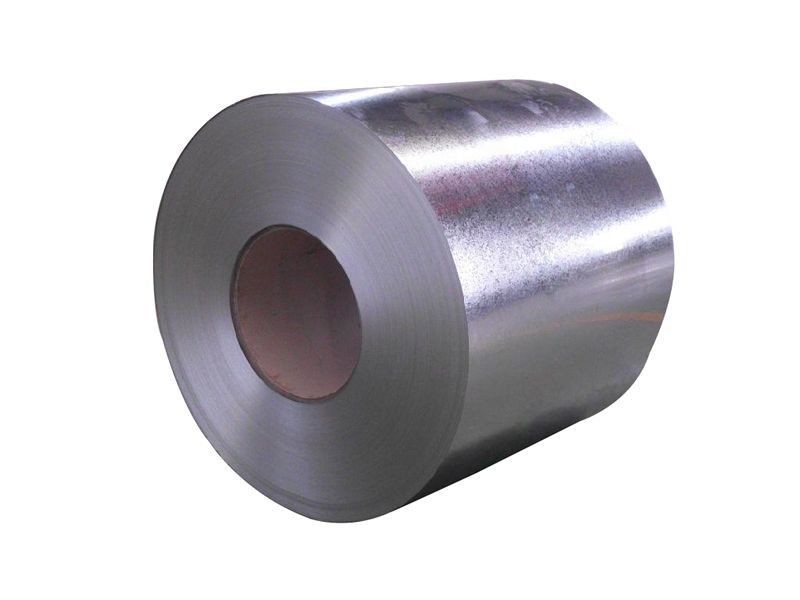

MR Tinplate Tin Coated Sheet Rust Resistance Acid Resistance Tinplate SPTE ETP TFS
TIN in mainly acts to prevent corrosion and rust.
It combines the strength and formability of steel with the corrosion
resistance, solderability and aesthetic appearance of tin in a material with
corrosion resistance, non-toxicity, high strength and good ductility.
| Health | Supply excellent and non-toxic barrier properties to protect food products from impruities , bacteria,moistrue, light and odours. |
| Safe | Light and high strength make food cans easy to ship and store |
| Environmental | recyclability and signinficant cost beneficts compared with aluminum. |
Electrolytic Tin Plate Paramenters
Prime quality tin plate sheet electrolytic tinplate transparent
coated for tin can making
| Product | Tinplate Sheet |
| Standard | ASTM A623, EN 10203, GB2520-2000,JISG3303-2002 and DINEN10202-2001 |
| Material | MR SPCC |
| Thickness | 0.14mm- 0.40mm (tolerance -/+0.01 mm) |
| Width | 600~1050mm (Tolerance: 0~3mm) or as per customers' requires |
| Cutting Length | 600~1050mm (Tolerance: 0~3mm) or as coils |
| Annealing | BA & CA |
| Temper | T1 T2 T3 T4 T5 DR8 DR9 TH550 TH580 TH620 TH660 |
| Tin Coating | 1.1/1.1 2.0/2.0 2.8/2.8 2.8/5.6 5.6/5.6 8.4/8.4 11.2/11.2 g/㎡ |
| Surface finish | Bright, Stone, Silver, Matt, Rough stone. |
| Coil Diameter | ID 420/ 508/610mm, OD from 1,000 to 1,250m |
| Coil Weight | 3~10 MT |
| Package | Seaworthy Standard with wooden pallet, corner protected. by sheet or coils according customer's requires. |
| Applications | Metal package usage like paint, chemical can,aerosol can and different food can production, Also battery,electric cable and other industries |
Electrolytic Tin Plate Show
Wearhouse NO.1
Wearhouse NO.2
Wearhouse NO.3
Tinplate Applications
Tinplate is applied to various containers such as food, beverage, artistic containers and electric parts.
TFS Applications
Excellent paint adhesion makes itself the most suitable material for making food can, crown,
artistic can and general can with painting.
