0.15mm 0.16mm Electrolytic Tin Plating SPTE TFS Food Grade Steel Sheet

0.15mm 0.16mm Electrolytic Tin Plating SPTE TFS Food Grade Steel Sheet

0.15mm electrolytic tin plating

0.16mm electrolytic tin plating

SPTE TFS food grade steel sheet

Place of Origin:

China

Brand Name:

QuanJiang

Certification:

MILL CERTIFICATE, CERTIFICATE OF ORIGIN

Model Number:

0.15mm 0.16mm tinplate

Contact Us

Request A Quote
Product Details
Features:
Rust Resistance, Corrosion Resistance, Heat Resistance , Alkali Resistance
Width::
610~1040mm
Hardness::
T1,T2,T3,T4,T5,DR7,DR8,DR9,TH550,TH520
Type::
Tinplate Coil/ Sheet
Temper::
BA CA
Package::
Iron Guard With Fumigation Wooden Pallet
Material::
MR,SPCC,prime Tinplate / TFS
Thickness::
0.14-0.45mm
Length:
600mm-1100mm ,Coils
Tin Coating::
1.1/1.1, 2.0/2.0, 2.8/2.8,5.6/5.6, Etc. Or Customerized
Surface::
Bright,Stone,Matte, Sliver, Rough Stone
Application::
Tuna Can, Food Can, Aerosol Can, Paint Can Etc
Payment & Shipping Terms
Minimum Order Quantity
25tons
Price
Negotiated
Packaging Details
Seaworthy Standard with wooden pallet, corner protected. by sheet or coils according customer's requires.
Delivery Time
30days after deposit
Payment Terms
T/T
Supply Ability
50000MT/Month
Product Description

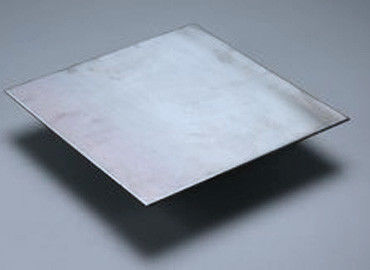

Electrolytic thin thickness tinplate coil for food grade

Tinplate refers to cold-rolled low-carbon thin steel plate or steel strip coated with commercial pure
tin on both sides. Tin mainly plays a role in preventing corrosion and rust. It combines the strength
and formability of steel with the corrosion resistance,tin solderability and beautiful appearance of
tin in one material. It has the characteristics of corrosion resistance, non-toxicity, high strength and
good ductility.
Tinplate is also known as tin-plated iron, tin-plated thin steel plate, the English abbreviation is SPTE.
Thickness 0.15mm-0.45mm
Width 610mm-1010mm
Length As client requirement or coil
Hardness T1,T2 ,T2.5 ,T3 ,T4 ,T5,DR-7,DR-8,DR-7M,DR-9
Tin coating 2.0/2.0,2.2/2.2,2.8/2.8,5.6/5.6
Tin Coating weight 1.1/1.1, 1.1/2.0, 1.1/5.6, 1.5/1.5, 2.0/2.0, 5.6/5.6 g/m² or as customized
Standard ASTM, AISI, DIN, GB,JIS
Material MR, SPCC, Q195, S08AL, etc
Finish Stone, Bright, Silver, Matte,
Application Chemical cans .food cans. tea cans and any other cans.ect
Packing Standard exporting package
Product Range
Product Thickness(mm) Width(mm) Hardness Tin Coating Weight Standard
Tinplate 0.15~0.45 600~1050 T2-T5 1.1g/m²~8.4g/m² GB-2520-2000
TFS-Tin Free Sheet 0.15~0.5 600~1050 T3-T5

Chromate painting weight 70~140 mg/m²

Chromate containing oxide layer 5~14 mg/m²

JISG3315-1987
0.15mm 0.16mm Electrolytic Tin Plating SPTE TFS Food Grade Steel Sheet 0
Chemical Composition
Hardness Range
Hardness Mark Target Hardness Application
T-1 49±3 Particularly suitable for soft pot processing
T-2 53±3 Particularly suitable for general soft pot perocessing
T-2.5 55±3 Applicable to soft gengeral cans
T-3 57±3 Suitable for high haedness cans
T-3.5 59±3 Applicable to the general tank that requires toughness
T-4 61±3 Suitable for general cans requiring greater toughness
T-5 65±3 It is suitable for large tank and container inner body
DR-8 73 Applicable to certain rigid beer, cans
DR-9 76 Applicable to certain rigid beer, cans and DRD cans
DR-9M 77 Applicable to certain rigid beer, cans and DRD cans
DR-10 80 Suitable for high-end rigid cans and covers

TINPLATE COILS WORKSHOP Show

0.15mm 0.16mm Electrolytic Tin Plating SPTE TFS Food Grade Steel Sheet 1

0.15mm 0.16mm Electrolytic Tin Plating SPTE TFS Food Grade Steel Sheet 2

Tinplate is widely used for the packaging of products. Such as food cans,

beverage cans, pet cans, closures,general line cans and so on.0.15mm 0.16mm Electrolytic Tin Plating SPTE TFS Food Grade Steel Sheet 3

0.15mm 0.16mm Electrolytic Tin Plating SPTE TFS Food Grade Steel Sheet 40.15mm 0.16mm Electrolytic Tin Plating SPTE TFS Food Grade Steel Sheet 5

  • Free samples provide.
  • 20 years experience technicial support.
  • Service always available .
  • 1st grade material for every production.
  • Original cost for your separated  purchase.

Printing workshop Production Process

0.15mm 0.16mm Electrolytic Tin Plating SPTE TFS Food Grade Steel Sheet 6

CERTIFICATE

0.15mm 0.16mm Electrolytic Tin Plating SPTE TFS Food Grade Steel Sheet 7

FAQ

Q. Are you a trading company or a manufacturer?
A. We're professional company with factory. We manufacture products ourselves and

     we source from other collaborative factories too, which guarantees a competitive

     price and product variety.

Q. I'm a home owner and I need small quantity, what do I do?
A. Please check with our sales team if it's in stock or if we have distributor locally.

Q. Can you make products from our designs?
A. Yes, we can do OEM, ODM and OBM, Feel free to let us know your requirements.

Q. How do I know your quality?
A. High solution detailed photos and free sample will be able to verify our quality.

Q. Can you send free samples?
A. You need to pay the sample fee. Please provide your a/c like DHL, or you ask your
courier to pick up from our office.

Q. What is your delivery date?
A. The delivery date is within 30 days after received the payment.

Q. What is your payment terms?
A. We accept T/T.
