Place of Origin:
China
Brand Name:
QuanJiang
Certification:
ISO9001
Model Number:
603#-153mm
Contact Us

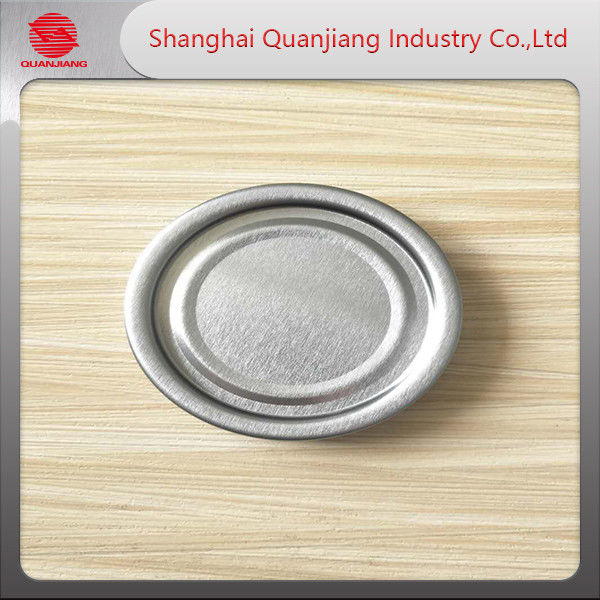

603 Food Packaging Dia 153mm Tinplate Bottom Lids Normal Tinned Round Bottle End
| Model NO. | Outer Diameter(mm) | Chuck Diameter(mm) | Round edge height(mm) | Dry rubber content(mg) | ||||||
| Standard | Target | Standard | Target | Standard | Target | Standard | Tolerance | |||
| 603 bottom | 163.60—163.85 | 163.70 | 3.10—3.30 | 3.15 | 2.00—2.20 | 2.10 | 110-130 | 95-145 | ||
| Hook side | ≥3.07((mm) | moisture(%)≤4 | Conductivity 5(Ma) per piece, not exceeding 3(Ma) on average | Depth of disk | 0.60±0.10 | |||||
| 20%CuSO4 | After soaking in 20% copper sulfate for 3 minutes, there was no obvious rust | |||||||||
| Boiling detection | After high temperature sterilization at 121℃ for 30 minutes, the inner and outer coating film has no loss of light, no foaming, no wrinkling, no whitening. | |||||||||
| antiacid | After high temperature sterilization at 121℃ for 30 minutes, the inner coating film has no peeling, peeling, obvious corrosion and blistering. | |||||||||
| Resistance to sulfur | After high temperature sterilization at 121℃ for 60 minutes, the inner coating film has no peeling, peeling, obvious corrosion and blackening. | |||||||||
Product Show
| MODEL | Can diameter | Chuck Diameter | Inside coating | Outside coating |
| 200# | 49.5mm |
gold coating aluminum coating (BPA-NI is available) |
gold coating plain printed |
|
| 202# | 52.3mm | 52mm | ||
| 209# | 62.3mm | |||
| 300# | 72.9mm | 73mm | ||
| 307# | 83.3mm | 83mm | ||
| 401# | 98.9mm | 99mm | ||
| 603# | 153.4mm | 153mm |
Lid Production Process
FAQ
Q:Can you send samples?
A:Of course, we can send samples to all parts of the world, our samples are free, but customers need to
bear the courier costs.
Q:What product information do I need to provide?
A:You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.
Q:What are the shipping ports?
A:Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can choose
other ports according to your needs.
Q:About product prices?
A:Prices vary from period to period due to cyclical changes in the price of raw materials.
Q:What are the certifications for your products?
A:We have ISO 9001, SGS, EWC and other certifications.
Q:How long does your delivery time take?
A:In general, our delivery time is within 30-45 days, and may be delayed if the demand is extremely large
or special circumstances occur.
Q:Can I go to your factory to visit?
A:Of course, we welcome customers from all over the world to visit our factory. However, some of the
plants are not open to the public.
Q:Does the product have quality inspection before loading?
A:Of course, all our products are strictly tested for quality before packaging, and unqualified products
will be destroyed.
