Aisi Paint Rust Resistance Prime Electrolytic Tinplate 0.15mm Thickness

Basic Information
Place of Origin: China
Brand Name: QuanJiang
Certification: JIS G3303 , DIN, ASTM, GB
Model Number: MR,SPCC,DR8,Q195,A08AL,SPTE
Minimum Order Quantity: 25tons
Price: Negotiated
Packaging Details: iron guard with fumating wooden pallets, as customer's requirement
Delivery Time: negotiated
Payment Terms: T/T
Supply Ability: 50000MT/Month
Detail Information
Hardness:: TS230, TS245, TS260, TS275, TS290, TH415, TH435, TH520, TH550, TH580, TH620 Type:: Sheet Or Coil
Temper:: T1, T2, T3, T4, T5, DR8,DR7,DR9 Package:: Iron Guard With Fumigation Wooden Pallet
Material:: MR,SPCC,prime Tinplate / TFS Thickness:: 0.15-0.45mm
Tin Coating:: 1.1/1.1, 2.8/2.8,5.6/5.6, Etc. Or Customerized Surface:: Bright,Stone,Matte, Sliver, Rough Stone
Application:: Sardine Can, Tuna Can, Food Can, Fruit Can, Bean Can Width:: 600-1000mm
Usage:: Aerosol Can, Tuna Can, Meat Can, Pinapple Can Etc Length:: 650mm-1000mm Or Customized
High Light:

Paint Prime Electrolytic Tinplate

,

Rust Resistance Prime Electrolytic Tinplate

,

0.15mm Thickness Electrolytic Tinplate


Product Description

TINPLATE SPTE/ TFS

Electrolytic Tin Plate English Abbreviations: SPTE. It refers to cold rolled low carbon

thin steel plate or steel strip coated with commercial pure tin on both sides.

TINPLATE

TINPLATE

Tinplate is a thin steel coated with tin. Tinplate is characterized by its beautiful metallic luster as well as excellent properties in corrosion resistance, solderability and weldability.

TIN FREE STEEL (TFS)

TIN FREE STEEL( TFS)

TFS is electrolytic chromium coated steel, which has a superior paintability and paint adhesion. Since TFS has an excellent sulfide stain resistance, it can be applied to food usage with inside coating.

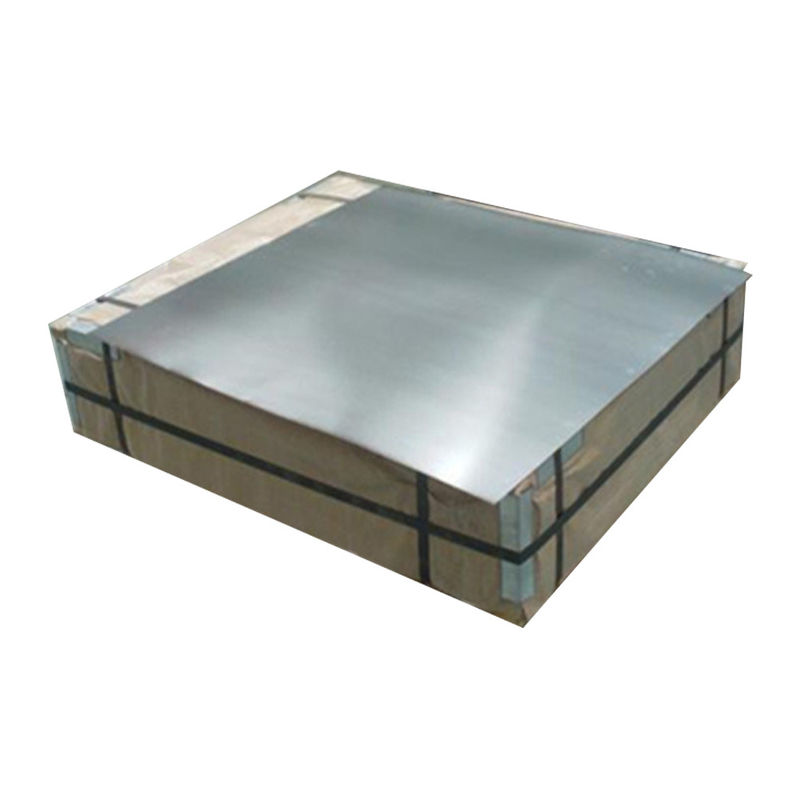

TINPLATE SHOW

Aisi Paint Rust Resistance Prime Electrolytic Tinplate 0.15mm Thickness 0

Aisi Paint Rust Resistance Prime Electrolytic Tinplate 0.15mm Thickness 1

PRINTING TINPLATE SHOW

Aisi Paint Rust Resistance Prime Electrolytic Tinplate 0.15mm Thickness 2
PORT: ShangHai
Product Features
*Product Name Printing Tin Plate
*Thickness 0.15mm-0.5mm
*Width 600mm-1000mm
*Type MR / SPCC
*Temper T1 T2 T2.5 T3 T4 T5 T6 DR7 DR8 DR9 DR10
*Annealing BA / CA
*Surface Bright / Stone / Matt / Sliver
*Tin Coating 1.1 /2.8 /5.6 /8.4 /11.2
*Oiling DOS
*Packing Anti-rust paper +Metal cover +Corner protected +Wood skid
*MOQ 25 TONS
*Application aerosol can, tuna can, meat can, pinapple can etc

OUR COMPANY

Shanghai Quanjiang Industrial Co.,ltd is a large-scale enterprise integrating manufacturing and sales

( international export). Established in 2001. With an area of more than 40 000 square meters. It's

located in Shanghai,China, We has advanced production equipment, equipped with pushing

machine, press, large heat treatment furnace,chamfering machine,sawing machine,large

sandblasting machine and other key equipment and a variety of testing instruments.

APPLICATION

Applications of Tinplate and TFS
ETP is primarily used for packaging foodstuffs and beverages, but it is also used in containers for oils, grease, paints, polishes, chemicals and many other products. Aerosol containers and caps and closures are also made from ETP.
TFS are most frequently used for can tops, screw and lug caps, snap and press-on closures and shallow-drawn food cans.

Aisi Paint Rust Resistance Prime Electrolytic Tinplate 0.15mm Thickness 3Aisi Paint Rust Resistance Prime Electrolytic Tinplate 0.15mm Thickness 4
