Place of Origin:
China
Brand Name:
QuanJiang
Certification:
MILL CERTIFICATE
Model Number:
MR 0.22mm TH520 TINPLATE
Contact Us
Tinplate(SPTE/ETP) is a common name for electroplated tin steel sheets, which refers to
cold-rolled low-carbon steel sheets or strips coated with commercial pure tin on both sides.
Tin mainly acts to prevent corrosion and rust. It combines the strength and formability of
steel with the corrosion resistance, solderability and aesthetic appearance of tin in a material
with corrosion resistance, non-toxicity, high strength and good ductility.
Electrolytic Tin Plate Paramenters
Prime quality tin plate sheet electrolytic tinplate transparent
coated for tin can making
Electrolytic Tin Plate Description
PRODUCT | Prime tinplate |
MATERIAL | MR SPCC |
Grade | Prime |
Annealing | BA,CA |
THICKNESS | 0.14-0.45mm |
WIDTH | 600-1050mm |
TEMPER | T2, T2.5, T3, T3.5, T4,T5 ,DR7,DR7M,DR8 |
COATING: | 2.0/2.0 ,2.8/2.8, 5.6/5.6, 2.8/5.6g/m² or according to customer's requirement |
FINISHS: . | Bright,Silver,Stone, Matte |
PACKINGS: |
anti-rust paper+metal cover+metal conrner protected+ wooden pallet |
MOQ | 30 tons |
DELIVERY | 15-30 days after payment |
Application:
Tinplate is widely used for the packaging of products. Such as food cans,
beverage cans, pet cans, closures,general line cans and so on.
Classification | Main Applications | |
Food Cans | Cans for preserved food | Preserved fishery and agricultural products, etc. |
Cans for beverages | Juice, carbonated soft drinks, other beverages,etc. | |
General Cans | 4L Cans | Automobile oil, mechanical oil, etc. |
18L Cans | Industrial containers for paint and oils | |
Pail Cans | Industrial containers for paint and oils | |
Aerosol Cans | Cosmetics, butane gas, pesticide, etc. | |
Crown | Crown Caps | Liquor, soft drink bottle caps |
Others | Electronic Components | Electronic items such as TV, tuner cases, etc. |
Electronic Jar | Electronic items such as electric cookers, etc. | |
Others | Other shell of batteries, toys, stationeries, etc. |

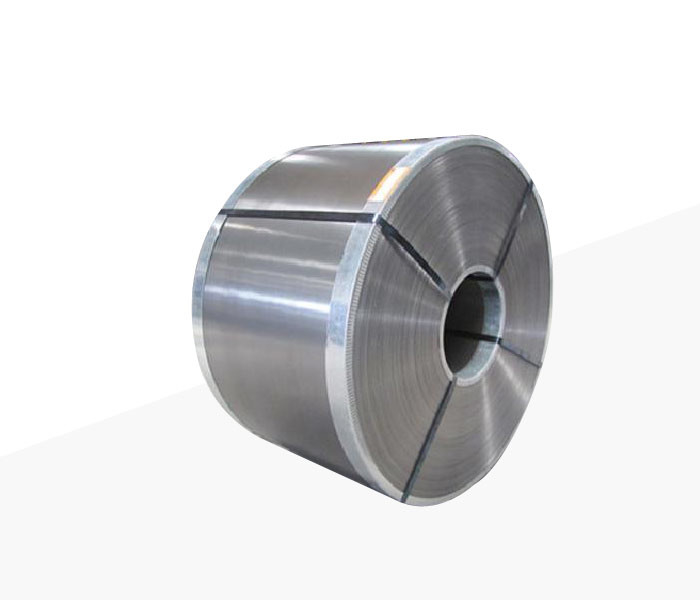

Tin Plate coils Show
Tinplate coil wearhouse NO.7
Tinplate coil wearhouse NO.6
TINPLATE SHEETS WORKSHOP SHOW
Tinplate sheet wearhouse NO.1
PARTNER
Production Process
CERTIFICATE
Information Required with orders and inquirys
Orders and inquiried shall be accompanied by the following information.
1. products name and grade
2.coaing and mass( for Tinplate only),temper grade,finish, and products size.
3.rolling direction
4.quantity
5.application and delivery date
6.number of sheets per packaging( for cut to length products)
7.inside diameter amd maximum acceptable unit coil weight (for coils products).
8.film type,color, contents,and other details of use and environment.
9.other special requirements,if any.
