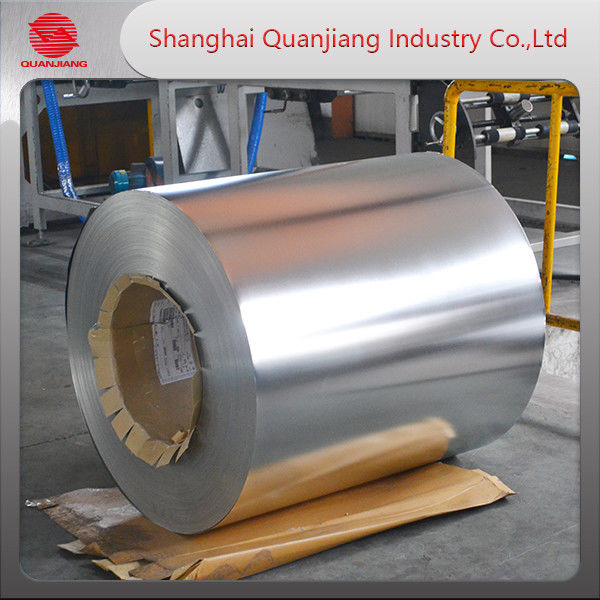

T61 TH550 TINPLATE
Tinplate, thin steel sheet with a coating of tin applied either by dipping in molten metal or by
electrolytic deposition; almost all tinplate is now produced by the latter process. Tinplate made
by this process is essentially a sandwich in which the central core is strip steel. This core is
cleaned in a pickling solution and then fed through tanks containing electrolyte, where tin is
deposited on both sides. As the strip passes between high-frequency electric induction coils,
it is heated so that the tin coating melts and flows to form a lustrous coat. The end product has
a tin coating of about 0.00003 inch (0.00076 millimetre) on each side.
Features of Tinplate Products
Excellent Corrosion Resistance
By selecting a proper coating weight, appropriate corrosion resistance is obtained against container contents.
Excellent Paintability & Printability
Printing is beautifully finished using various lacquers and inks.
Excellent Solderability & Weldability
TIN PLATE is widely used for making various types of cans by soldering or welding.
Excellent Formability & Strength
By selecting a proper temper grade, appropriate formability is obtained for various applications as well as the required strength after forming.
Electrolytic ETP is characterized by its beautiful metallic luster. Products with various kinds of surface roughness are produced by selecting the surface finish of the substrate steel sheet.
|hot sale tinplate /SPTE coating weight 1.1/1.1,best price
|T1 - T5 BA and CA both
|Thickness and tolerance
|0.15~0.50mm(Tolerance: _+0.01 mm)
|Width & tolerance
|600~1050mm (Tolerance: 0~3mm)
|Cut length & tolerance
|650~1200mm (Tolerance: 0~3mm ) or coils
|Coil inside diameter
|Bright, Stone, Silver, Matte
|Seaworthy Standard with wooden pallet
|GB/T2520, JIS G3303, ASTM A623M & EN10202
|Hardness Guarantee (HR30T)HR30T
|Nozzles, spouts, closures, and deep drawing.
|Rings and plugs, pie pans, closures, shallow drawn and specialized can parts.
|Battery can bodies, small can ends and bodies.
|Can ends and bodies, large diameter closures, crown caps.
|Can ends and bodies, crown caps and small screw closures.
|Can ends and bodies for non corrosive products.
|73 ± 3
|small diameter round can bodies and ends
|Nominal surface roughness (um Ra)
|Glazed surface obtained after melting treatment of electrotinned smooth raw materail strip with extremely fine rubstone fingure by processing.
|Glazed surface obtained after melting treatment of electrotinned smooth raw materail stripfeaturing certain rubstone figures.
|Glazed surface obtained after melting treatment of electrotinned smooth raw material strip with rough matt furface.
|Matt surface of general matt raw material strip without melting treatment.
|Cans for preserved food
|Preserved fishery and agricultural products, etc.
|Cans for beverages
|Juice, carbonated soft drinks, other beverages, etc
|Automobile oil, mechanical oil, etc.
|Industrial containers for paint and oils
|Industrial containers for paint and oils
|Cosmetics, butane gas, pesticide, etc.
|Liquor, soft drink bottle caps
|Electronic items such as TV, tuner cases, etc.
|Electronic items such as electric cookers, etc.
|Other shell of batteries, toys, stationeries, etc.
Anti-rust paper +metal cover +corner protected +wood skid Laded into 20 feet container with
max weight 25 tons.
Thin plastic film +rust-proof paper +metal cover +metal angles + straps + pallet. Loaded in
20 feet container with max weight 25 tons.
Application of Tinplate
Tinplate is applied to various containers such as food, beverage, artistic containers
and electric parts.
Excellent paint adhesion makes itself the most suitable material for making food can,
crown,artistic can and general can with painting.
Information Required with orders and inquirys
Orders and inquiried shall be accompanied by the following information.
1. products name and grade
2.coaing and mass( for Tinplate only),temper grade,finish, and products size.
5.application and delivery date
6.number of sheets per packaging( for cut to length products)
7.inside diameter amd maximum acceptable unit coil weight (for coils products).
8.film type,color, contents,and other details of use and environment.
9.other special requirements,if any.
TEST equipment of TINPLATE
