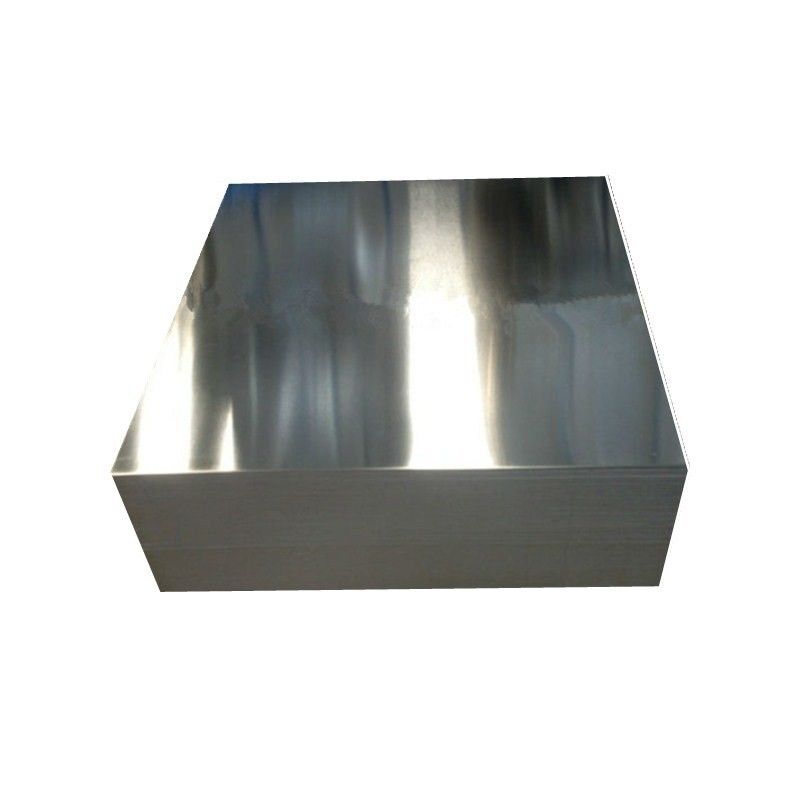

Acid resistance Non Toxic DR8 Food Grade Lacquer Tin Plated Steel tinplate SPTE TFS

Acid resistance Non Toxic DR8 Food Grade Lacquer Tin Plated Steel tinplate SPTE TFS

Lacquer Tin Plated Steel

DR8 Tin Plated Steel

DR8 tinplate steel coil

Place of Origin:

China

Brand Name:

QuanJiang

Certification:

MILL CERTIFICATE

Model Number:

MR,SPCC tinplate DR8

Contact Us

Request A Quote
Product Details
Width::
600~1050mm Or Customized
Hardness::
TS230, TS245, TS260, TS275, TS290, TH415, TH435, TH520, TH550, TH580, TH620
Type::
Tinplate Coil/ Sheet
Package::
Rust-proof Paper+metal Cover+metal Angles+straps+pallet
Material::
MR,SPCC,prime Tinplate / TFS
Thickness::
0.15-0.48mm (tolerance -/+0.01 Mm)
Length:
600mm-1200mm Or As Coils
Tin Coating::
1.1/1.1; 2.2/2.2; 2.8/2.8; 5.6/5.6;2.0/2.0; 2.8/5.6g/m2
Surface::
Bright,Stone,Silver ,Matte
Application::
Making Metal Packaging, Food Can
Payment & Shipping Terms
Minimum Order Quantity
25tons
Price
Negotiated
Packaging Details
rust-proof paper+metal cover+metal angles+straps+pallet or customized
Delivery Time
negotiated
Payment Terms
T/T
Supply Ability
50000MT/Month
Product Description

Acid resistance Non Toxic DR8 Food Grade Lacquer Tin Plated Steel tinplate SPTE TFS

What is Tinplate?
Tinplate (SPTE/ETP) is a common name for electroplated tin steel sheets, which refers
to cold-rolled low-carbon steel sheets or strips coated with commercial pure tin on both
sides. Tin mainly acts to prevent corrosion and rust. It combines the strength and
formability of steel with the corrosion resistance, solderability and aesthetic appearance
of tin in a material with corrosion resistance, non-toxicity, high strength and good ductility.
Tin-plate packaging has a wide range of coverage in the packaging industry because
of its good sealing, preservation, light-proof, ruggedness and unique metal decoration
charm. Because of its strong antioxidant, diverse styles and exquisite printing, tinplate
packaging container is popular with customers, and widely used in food packaging,
pharmaceutical packaging, commodity packaging, instrument packaging, industrial
packaging and so on.
Health Supply excellent and non-toxic barrier properties to protect food products from impurities, bacteria, moisture, light, and odours.
Safe Light and high strength make food can easy to ship and store.
Environmental Recyclability and significant cost benefits compared with aluminum.
Tin Plated Steel ParamentersAcid resistance Non Toxic DR8 Food Grade Lacquer Tin Plated Steel tinplate SPTE TFS 0Acid resistance Non Toxic DR8 Food Grade Lacquer Tin Plated Steel tinplate SPTE TFS 1
Matt Surface Tinplate Welding Tin Plate Sheet
Tinplate Specifications
PRODUCT Tin plate
MATERIAL MR SPCC
GRADE Prime
Thinkness 0.15mm-0.48mm
Width 600mm-1000mm
TEMPER T1,T2,T3,T4,T5,DR7;DR8;DR9
COATING

1.1/1.1 2.0/2.0 2.8/2.8 2.8/5.6

5.6/5.6 8.4/8.4 11.2/11.2 g/㎡

Tin coating weight: 1.1g/㎡-8.4g/㎡
Finish Bright finish, Stone, Matte, Silver
Electrolytic Tin Plate Workshop Show

Acid resistance Non Toxic DR8 Food Grade Lacquer Tin Plated Steel tinplate SPTE TFS 2

Acid resistance Non Toxic DR8 Food Grade Lacquer Tin Plated Steel tinplate SPTE TFS 3

Temper & Hardness
Temper Hardness Guarantee (HR30T) Applications
T1 49±3 Nozzles,spouts,closures,and deep deawing.
T2 52±3 Ring and plugs,pie pans,closures,shallow drawn and specialized can parts.
T2.5 55±3 Battery can bodies,small can ends and bodies.
T3 57±3 Can ends and bodies,large diameter closures,crown caps.
T4 61±3 Can ends and bodies,crown caps and small screw closures.
T5 65±3 Can ends and bodies for non corrosive products.
DR-8 73±3 Small diameter round can bodies and ends.

APPLICATION

Acid resistance Non Toxic DR8 Food Grade Lacquer Tin Plated Steel tinplate SPTE TFS 4

PACKING

Acid resistance Non Toxic DR8 Food Grade Lacquer Tin Plated Steel tinplate SPTE TFS 5Acid resistance Non Toxic DR8 Food Grade Lacquer Tin Plated Steel tinplate SPTE TFS 6

Q:Can you send samples?

A:Of course, we can send samples to all parts of the world, our samples are free, but

customers need to bear the courier costs.

Q:What product information do I need to provide?

A:You need to provide the grade, width, thickness, coating and the number of tons

you need to purchase.

Q:What are the shipping ports?

A:Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports,

you can choose other ports according to your needs.

Q:About product prices?

A:Prices vary from period to period due to cyclical changes in the price of raw materials.

Q:What are the certifications for your products?

A:We have ISO 9001, SGS, EWC and other certifications.

Q:How long does your delivery time take?

A:In general, our delivery time is within 30-45 days, and may be delayed if the demand

is extremely large or special circumstances occur.

Q:Can I go to your factory to visit?

A:Of course, we welcome customers from all over the world to visit our factory. However,

some of the plants are not open to the public.

Q:Does the product have quality inspection before loading?

A:Of course, all our products are strictly tested for quality before packaging, and unqualified
