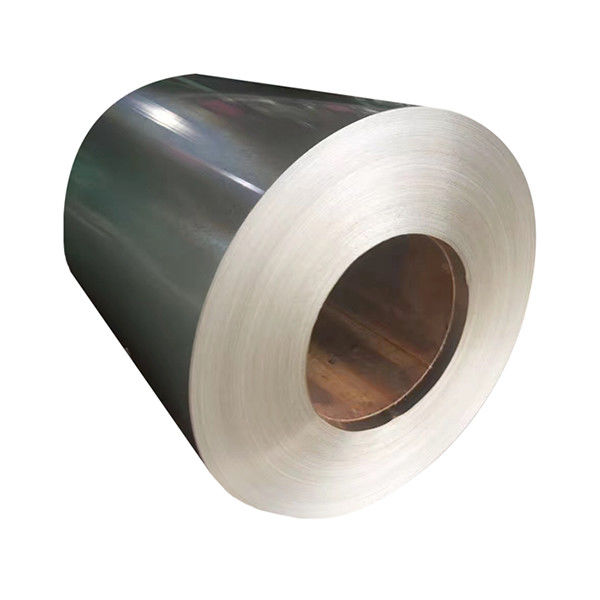

MR Tinplate Tin Coated Steel Sheet Tin Can Making Rust Resistance Acid Resistance Tinplate SPTE TFS

MR Tinplate Tin Coated Steel Sheet Tin Can Making Rust Resistance Acid Resistance Tinplate SPTE TFS

SPCC tin coated steel sheet

Rust Resistance Tin Coated Steel Sheet

Electrolytic Tin Plated Steel Acid Resistance

Place of Origin:

China

Brand Name:

QuanJiang

Certification:

SGS

Model Number:

MR,SPCC

Contact Us

Request A Quote
Product Details
Width::
600~1150mm
Hardness::
TS245, TS260, TS275, TS290, TH415, TH435, TH520, TH550, TH580, TH620.
Type::
Coil Or Sheet
Temper::
T1, T2, T3, T4, T5, DR8,DR7,DR9
Package::
Iron Guard With Fumigation Wooden Pallet
Material::
Tinplate Or Tin Free Steel
Thickness::
0.14mm-0.47mm
Length:
600mm-1080mm Or As Coils
Tin Coating::
1.1/1.1, 2.8/2.8,5.6/5.6, Etc. Or Customerized
Surface::
Bright,Stone,Silver ,Matte, Rough Stone
Application::
Aerosol Can, Sardines Can, Tuna Can , Vergetabl Can, Fruit Can Paint Can
Application:
Beverage Can,aerosol Can, Food Can, DI Can
Payment & Shipping Terms
Minimum Order Quantity
25tons
Price
Negotiated
Packaging Details
Seaworthy Standard with wooden pallet, corner protected. by sheet or coils according customer's requires.
Delivery Time
negotiated
Payment Terms
T/T
Supply Ability
50000MT/Month
Product Description

MR tinplate Tin Coated Steel Sheet tin Can Making rust resistance acid resistance tinplate SPTE TFS

Tinplate(SPTE/ETP) is a common name for electroplated tin steel sheets,

which refers to cold-rolled low-carbon steel sheets or strips coated with

commercial pure tin on both sides. Tin mainly acts to prevent corrosion

and rust. It combines the strength and  formability of steel with the corrosion

resistance, solderability and aesthetic appearance of tin in a material with

corrosion resistance, non-toxicity, high strength and good ductility.

Health Supply excellent and non-toxic barrier properties to protect food products from impruities , bacteria,moistrue, light and odours.
Safe Light and high strength make food cans easy to ship and store
Environmental  recyclability and signinficant cost beneficts compared with aluminum.

Electrolytic Tin Plate Paramenters

Prime quality tin plate sheet electrolytic tinplate transparent

coated for tin can making

PRODUCT Prime tinplate
STANDARD BS EN 10202, DIN EN 10203, GB/T2520 , JIS G3303
MATERIAL MR SPCC
Grade Prime
Annealing BA,CA
THICKNESS 0.14-0.45mm
WIDTH 600-1050mm
TEMPER T2, T2.5, T3, T3.5, T4,T5 ,DR7,DR7M,DR8
COATING: 2.8g/2.8g, 5.6g/5.6g, 2.8/5.6,2.0/2.0 gr/m² or according to customer's requirement
FINISHS: . Bright,Silver,Stone, Matte

PACKINGS:

export packing. Or according to customer's requirements.
MOQ 25 tons
DELIVERY 15-30 days after payment
MR Tinplate Tin Coated Steel Sheet Tin Can Making Rust Resistance Acid Resistance Tinplate  SPTE TFS 0
Matt Surface Tinplate Welding Tin Plate Sheet
Product Tinplate Sheet
Standard ASTM A623, EN 10203, GB2520-2000,JISG3303-2002 and DINEN10202-2001
Material MR SPCC
Thickness 0.14mm- 0.40mm (tolerance -/+0.01 mm)
Width 600~1050mm (Tolerance: 0~3mm) or as per customers' requires
Cutting Length 600~1050mm (Tolerance: 0~3mm) or as coils
Annealing BA & CA
Temper T1 T2 T3 T4 T5 DR8 DR9 TH550 TH580 TH620 TH660
Tin Coating 1.1/1.1 2.0/2.0 2.8/2.8 2.8/5.6 5.6/5.6 8.4/8.4 11.2/11.2 g/㎡
Surface finish Bright, Stone, Silver, Matt, Rough stone.
Coil Diameter ID 420/ 508/610mm, OD from 1,000 to 1,250m
Coil Weight 3~10 MT
Package Seaworthy Standard with wooden pallet, corner protected. by sheet or coils according customer's requires.
Applications Metal package usage like paint, chemical can,aerosol can and different food can production, Also battery,electric cable and other industries

Electrolytic Tin Plate Show

MR Tinplate Tin Coated Steel Sheet Tin Can Making Rust Resistance Acid Resistance Tinplate  SPTE TFS 1

MR Tinplate Tin Coated Steel Sheet Tin Can Making Rust Resistance Acid Resistance Tinplate  SPTE TFS 2

MR Tinplate Tin Coated Steel Sheet Tin Can Making Rust Resistance Acid Resistance Tinplate  SPTE TFS 3

Tinplate Applications

Tinplate is applied to various containers such as food, beverage, artistic containers and electric parts.

TFS Applications

Excellent paint adhesion makes itself the most suitable material for making food can, crown,

artistic can and general can with painting.

MR Tinplate Tin Coated Steel Sheet Tin Can Making Rust Resistance Acid Resistance Tinplate  SPTE TFS 4MR Tinplate Tin Coated Steel Sheet Tin Can Making Rust Resistance Acid Resistance Tinplate  SPTE TFS 5MR Tinplate Tin Coated Steel Sheet Tin Can Making Rust Resistance Acid Resistance Tinplate  SPTE TFS 6
