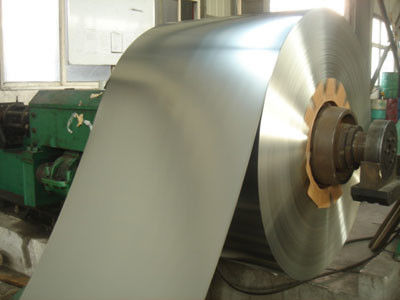

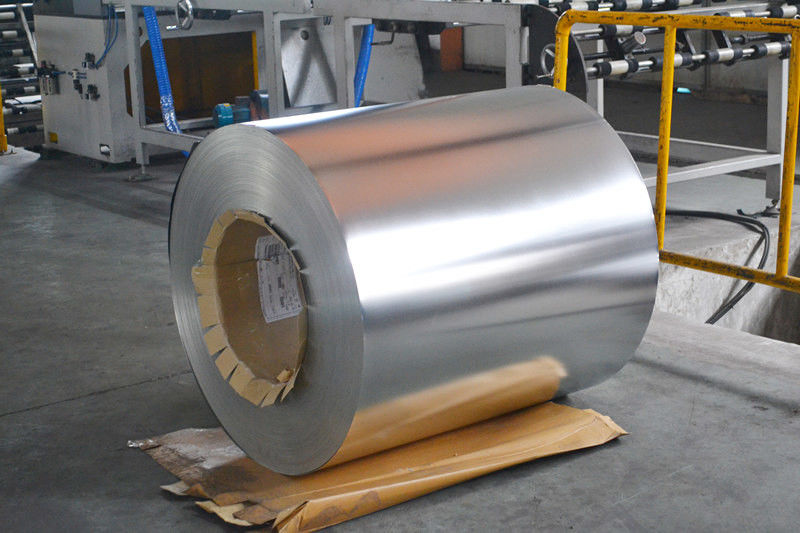

ETP Electrolytic Tinplate Printed Tin Plate Sheet
| TINPLATE | Tinplate is a thin steel coated with tin. Tinplate is characterized by its beautiful metallic luster as well as excellent properties in corrosion resistance, solderability and weldability. |
| TIN FREE STEEL (TFS) | TFS is electrolytic chromium coated steel, which has a superior paintability and paint adhesion. Since TFS has an excellent sulfide stain resistance, it can be applied to food usage with inside |
Features of Tinplate Products
Excellent Corrosion Resistance
By selecting a proper coating weight, appropriate corrosion resistance is obtained against
container contents.
Excellent Paintability & Printability
Printing is beautifully finished using various lacquers and inks.
Excellent Solderability & Weldability
TIN PLATE is widely used for making various types of cans by soldering or welding.
Excellent Formability & Strength
By selecting a proper temper grade, appropriate formability is obtained for various
applications as well as the required strength after forming.
Beautiful Appearance
Electrolytic ETP is characterized by its beautiful metallic luster. Products with various
kinds of surface roughness are produced by selecting the surface finish of the substrate
steel sheet.
|
Applications of Tinplate and TFS |
|
ETP is primarily used for packaging foodstuffs and beverages, but it is also used in containers for oils, grease, paints, polishes, chemicals and many other products. Aerosol containers and caps and closures are also made from ETP. |
|
TFS are most frequently used for can tops, screw and lug caps, snap and press-on closures and shallow-drawn food cans. |
|
Electrodes, Cable tape, Magnetic screen covers, etc. |
|
Automotive oil filters, Automotive air filters, Gaskets, etc. |
|
Gas meter internal components, Heat exchangers, cookware, shelving, etc. |
| Q/BQB 450-2009 | JIS G3303:2008 | ASTM A623M-08 | DIN EN 10202:201 | ISO 11949:1995 | GB/T 2520-2008 | GB/T 2520-2000 | |
| Single cold-reduced | - | T-1 | T-1(T49) | TS230 | TH50+SE | T-1 | TH50+SE |
| T1.5 | - | - | - | - | T-1.5 | - | |
| T-2 | T-2 | T-2(T53) | TS245 | TH52+SE | T-2 | TH52+SE | |
| T-2.5 | T-2.5 | - | TS260 | TH55+SE | T-2.5 | TH55+SE | |
| T-3 | T-3 | T-3(T57) | TS275 | TH57+SE | T-3 | TH57+SE | |
| T-3.5 | - | - | TS290 | - | T-3.5 | - | |
| T-4 | T-4 | T-4(T61) | TH415 | TH61+SE | T-4 | TH61+SE | |
| T-5 | T-5 | T-5(T65) | TH435 | TH65+SE | T-5 | TH65+SE | |
| Double cold-reduced | DR-7M | - | DR-7.5 | TH520 | - | DR-7M | - |
| DR-8 | DR-8 | DR-8 | TH550 | T550+SE | DR-8 | T550+SE | |
| DR-8M | - | DR-8.5 | TH580 | T580+SE | DR-8M | T580+SE | |
| DR-9 | DR-9 | DR-9 | TH620 | T620+SE | DR-9 | T620+SE | |
| DR-9M | DR-9M | DR-9.5 | - | T660+SE | DR-9M | T660+SE | |
| DR-10 | DR-10 | - | - | T690+SE | DR-10 | T690+SE |
Application:
Tinplate is widely used for the packaging of products. Such as food cans,
beverage cans, pet cans, closures,general line cans and so on.
| Classification | Main Applications | |
| Food Cans | Cans for preserved food | Preserved fishery and agricultural products, etc. |
| Cans for beverages | Juice, carbonated soft drinks, other beverages, etc. | |
| General Cans | 4L Cans | Automobile oil, mechanical oil, etc. |
| 18L Cans | Industrial containers for paint and oils | |
| Pail Cans | Industrial containers for paint and oils | |
| Aerosol Cans | Cosmetics, butane gas, pesticide, etc. | |
| Crown | Crown Caps | Liquor, soft drink bottle caps |
| Others | Electronic Components | Electronic items such as TV, tuner cases, etc. |
| Electronic Jar | Electronic items such as electric cookers, etc. | |
| Others | Other shell of batteries, toys, stationeries, etc. | |
