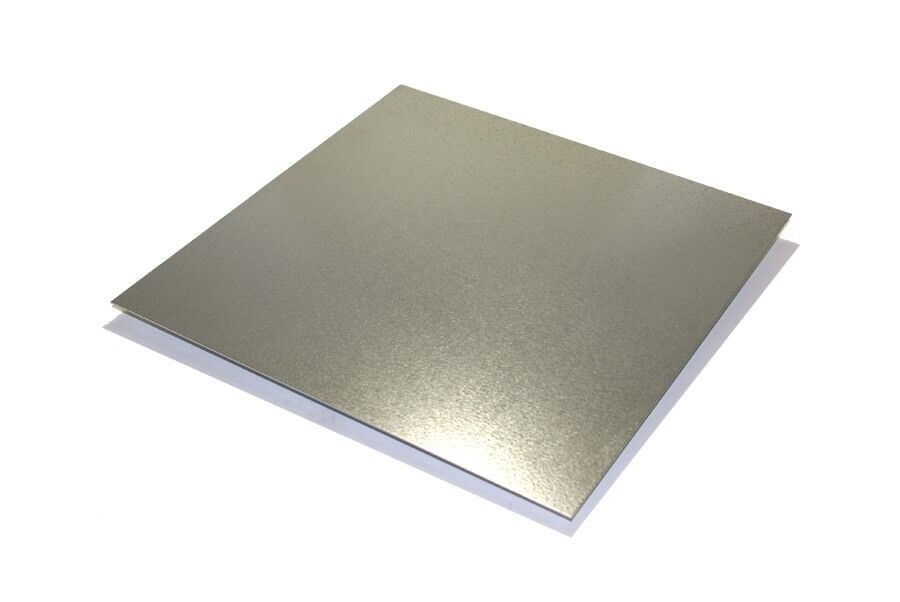

Electrolytic Chrome Coated Steel Sheet & Tin Plated Steel Sheet for Can Making
Tinplate(SPTE/ETP) is a common name for electroplated tin steel sheets, which refers
to cold-rolled low-carbon steel sheets or strips coated with commercial pure tin on both
sides. Tin mainly acts to prevent corrosion and rust. It combines the strength and
formability of steel with the corrosion resistance, solderability and aesthetic appearance
of tin in a material with corrosion resistance, non-toxicity, high strength and good ductility.
|
Applications of Tinplate and TFS |
|
ETP is primarily used for packaging foodstuffs and beverages, but it is also used in containers for oils, grease, paints, polishes, chemicals and many other products. Aerosol containers and caps and closures are also made from ETP. |
|
TFS are most frequently used for can tops, screw and lug caps, snap and press-on closures and shallow-drawn food cans. |
Miscellaneous
Electrodes, Cable tape, Magnetic screen covers, etc.
Automotive oil filters, Automotive air filters, Gaskets, etc.
Gas meter internal components, Heat exchangers, cookware, shelving, etc.
Electrolytic Tin Plate Show
Matt Surface Tinplate Welding Tin Plate Sheet
| Product | Tinplate Sheet |
| Standard | ASTM A623, EN 10203, GB2520-2000,JISG3303-2002 and DINEN10202-2001 |
| Material | MR SPCC |
| Thickness | 0.15- 0.5mm (tolerance -/+0.01 mm) |
| Width | 700~1150mm (Tolerance: 0~3mm) or |
| Cutting Length | 700~1150mm (Tolerance: 0~3mm) or as coils |
| Annealing | BA & CA |
| Temper | T1 T2 T3 T4 T5 DR7 DR8 DR9 TH550 TH580 TH620 TH660 |
| Tin Coating | 1.1/1.1 2.0/2.0 2.8/2.8 2.8/5.6 5.6/5.6 8.4/8.4 11.2/11.2 g/㎡ |
| Surface finish | Bright, Stone, Silver, Matt |
| Coil Diameter | ID 420/ 508/610mm, OD from 1,000 to 1,250m |
| Coil Weight | 3~10 MT |
| Package | Seaworthy Standard with wooden pallet, corner protected. by sheet or coils according customer's requires. |
| Applications | Metal package usage like paint, chemical can,aerosol can and different food can production, Also battery,electric cable and other industries |
WORKSHOP SHOW
OUR COMPANY
Shanghai Quanjiang Industrial Co.,ltd is a large-scale enterprise integrating manufacturing and sales
( international export). Established in 2001. With an area of more than 40 000 square meters. It's
located in Shanghai,China, We has advanced production equipment, equipped with pushing
machine, press, large heat treatment furnace,chamfering machine,sawing machine,large
sandblasting machine and other key equipment and a variety of testing instruments.
