Prime quality high grade creative custom high hardness electrolytic
tinplate for food can
Tinplate Coils/Strips

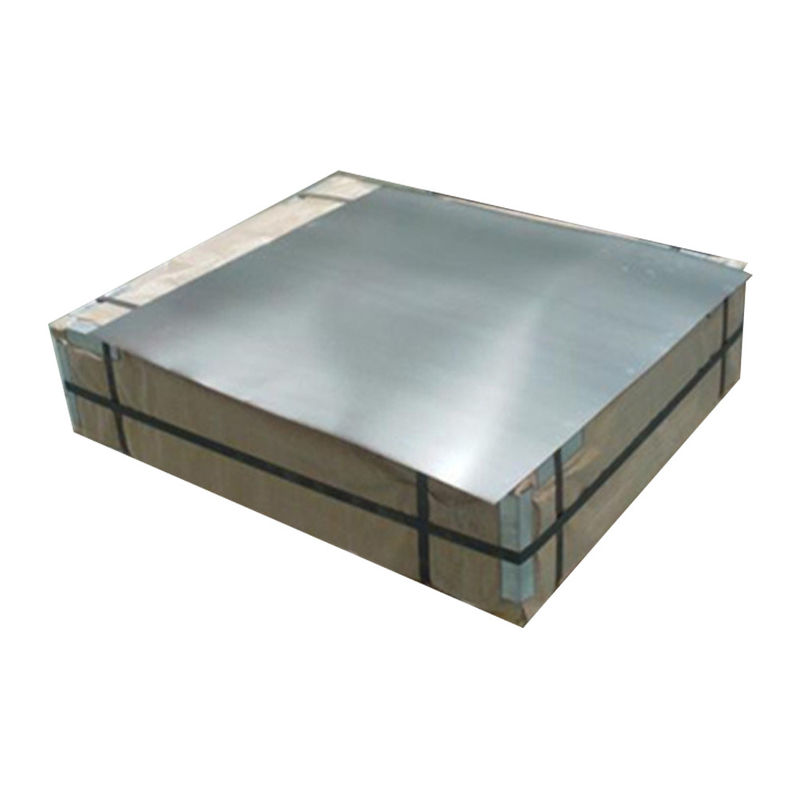

Tinplate is a thin steel sheet coated by tin. It has an extremely beautiful metallic
luster as well as excellent properties in corrosion resistance, solderability, and
weldability.
Tinplate is used for making all types of containers such as food cans, beverage
cans, 18-liter cans, and artistic cans. Its applications are not limited to containers;
recently, tinplate has also been used for making electrical machinery parts and
many other products.
Electrolytic Tin Plate Paramenters
Prime quality tin plate sheet electrolytic tinplate transparent
coated for tin can making
Electrolytic Tin Plate Description
| PRODUCT | Prime tinplate |
| STANDARD | BS EN 10202, DIN EN 10203, GB/T2520 , JIS G3303 |
| MATERIAL | MR SPCC |
| Grade | Prime |
| Annealing | BA,CA |
| THICKNESS | 0.18-0.45mm |
| WIDTH | 600-1050mm |
| TEMPER | T2, T2.5, T3, T3.5, T4,T5 ,DR7,DR7M,DR8 |
| COATING: | 2.8g/2.8g, 5.6g/5.6g, 2.8/5.6,2.0/2.0 gr/m² or according to customer's requirement |
| FINISHS: . | Bright,Silver,Stone, Matte |
|
PACKINGS:
|
export packing. Or according to customer's requirements. |
| MOQ | 25 tons |
| DELIVERY | 15-30 days after payment |
| Parameters | |||||
| Product | Thickness | Thickness Tolerance | Width | Width Tolerance | Length |
| Crown Cork | 0.230mm | 0.227mm~0.231mm | 907mm | 906mm~908mm | 1018mm |
| 0.235mm | 0.232mm~0.236mm | 907mm | 906mm~908mm | 1018mm | |
| 0.240mm | 0.237mm~0.240mm | 907mm | 906mm~908mm | 1018mm | |
| Food Can | 0.180mm | 0.175mm~0.180mm | 710mm~930mm | +1 | |
| 0.190mm | 0.185mm~0.190mm | 710mm~930mm | +1 | ||
| 0.200mm | 0.195mm~0.200mm | 710mm~930mm | +1 | ||
| Food Can Ends | 0.200mm | 0.195mm~0.200mm | 800mm | +1 | |
| Beverage Can | 0.200mm | 0.195mm~0.200mm | 710mm~930mm | +1 | |
| Beverage Can Ends | 0.190mm | 0.190mm~0.193mm | 880mm | +1 | |
| Lnk Can | 0.22mm~0.280mm | ±0.005mm | 710mm~930mm | +1 | |
| Screw Cap | 0.160mm | 0.155mm~0.160mm | 710mm~930mm | +1 | |
| 0.160mm | 0.155mm~0.160mm | 710mm~930mm | +1 | ||
| Cable Wrapping | 0.130mm | 0.130mm~0.135mm | 610mm~910mm | +1 | |
| 0.130mm | 0.150mm~0.155mm | 610mm~910mm | +1 | ||
TINPLATE WORKSHOP SHOW
OUR COMPANY
Shanghai Quanjiang Industrial Co.,ltd is a large-scale enterprise integrating manufacturing and sales
( international export). Established in 2001. With an area of more than 40 000 square meters. It's located
in Shanghai,China, We has advanced production equipment, equipped with pushing machine, press, large
heat treatment furnace,chamfering machine,sawing machine, sawing machine,large sandblasting machine
and other key equipment and a variety of testing instruments.
