Place of Origin:
China
Brand Name:
QuanJiang
Certification:
JIS G3303 , DIN, ASTM, GB
Model Number:
MR,SPCC,DR8,Q195,A08AL,SPTE
Contact Us
Video
Video

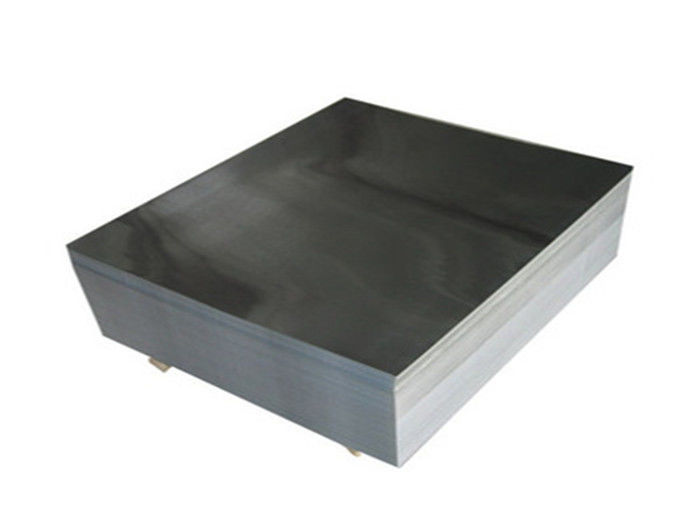

Electrolytic tinplate ETP Steel Coil For Packaging Tin Plate Sheets
|
Hygienic
|
Provide excellent and non-toxic barrier properties to protect food products from impurities, bacteria, moisture, light, and odours. |
| Safe |
Low weight and high strength make food cans easy to ship and store. |
|
Eco-friendly |
Offer 100% recyclability; and significant cost benefits compared with aluminum. |
| Temper & Hardness | ||
| Temper | Hardness Guarantee (HR30T) | Applications |
| T1 | 49±3 | Nozzles,spouts,closures,and deep deawing. |
| T2 | 52±3 | Ring and plugs,pie pans,closures,shallow drawn and specialized can parts. |
| T2.5 | 55±3 | Battery can bodies,small can ends and bodies. |
| T3 | 57±3 | Can ends and bodies,large diameter closures,crown caps. |
| T4 | 61±3 | Can ends and bodies,crown caps and small screw closures. |
| T5 | 65±3 | Can ends and bodies for non corrosive products. |
| DR-8 | 73±3 | Small diameter round can bodies and ends. |
Application:
Tinplate is widely used for the packaging of products. Such as food cans,
beverage cans, pet cans, closures,general line cans and so on.
| Classification | Main Applications | |
| Food Cans | Cans for preserved food | Preserved fishery and agricultural products, etc. |
| Cans for beverages | Juice, carbonated soft drinks, other beverages, etc. | |
| General Cans | 4L Cans | Automobile oil, mechanical oil, etc. |
| 18L Cans | Industrial containers for paint and oils | |
| Pail Cans | Industrial containers for paint and oils | |
| Aerosol Cans | Cosmetics, butane gas, pesticide, etc. | |
| Crown | Crown Caps | Liquor, soft drink bottle caps |
| Others | Electronic Components | Electronic items such as TV, tuner cases, etc. |
| Electronic Jar | Electronic items such as electric cookers, etc. | |
| Others | Other shell of batteries, toys, stationeries, etc. | |
Production Process
CERTIFICATE
Information Required with orders and inquirys
Orders and inquiried shall be accompanied by the following information.
1. products name and grade
2.coaing and mass( for Tinplate only),temper grade,finish, and products size.
3.rolling direction
4.quantity
5.application and delivery date
6.number of sheets per packaging( for cut to length products)
7.inside diameter amd maximum acceptable unit coil weight (for coils products).
8.film type,color, contents,and other details of use and environment.
9.other special requirements,if any.
