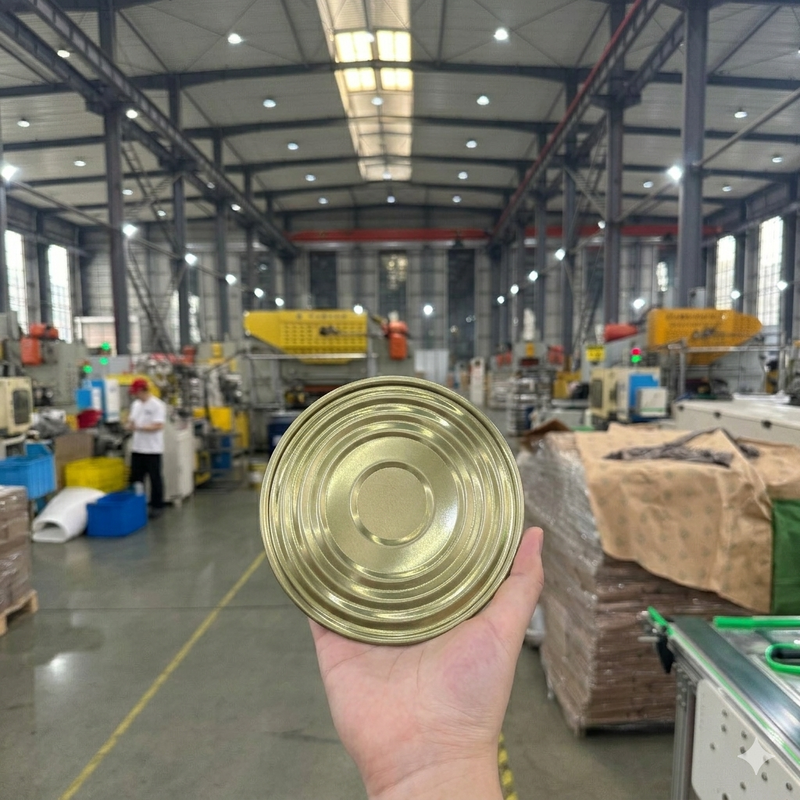

Premium Tinplate Lids & Sanitary Closures for Metal Packaging

Our comprehensive Tinplate Lid portfolio (including standard sanitary round ends, bottom lids, and customizable bottle closures) represents the benchmark of hermetic sealing technology for the global metal packaging industry. Fabricated from high-grade Electrolytic Tinplate (SPTE) or Tin-Free Steel (TFS), these lids provide an absolute barrier against oxygen, light, moisture, and microbial contamination. By utilizing low-carbon cold-rolled steel coated with micro-refined pure tin, each Tinplate Lid delivers the ultimate combination of structural rigidity and food-safe chemical passivity.

Engineered to fulfill the demanding operational mandates of high-speed automated canning lines worldwide, our Tinplate Lid solutions span an expansive diameter range—covering all major international specifications from small beverage closures to large bulk food container ends. Available in precise gauge thicknesses ranging from 0.15mm to 0.50mm, our lids feature precision-engineered curling profiles and professionally applied liquid gaskets. Whether your application requires standard plain ends or high-definition lithographic branded printing, our universal lid series delivers the mechanical integrity needed to protect your products throughout the global supply chain.

Our premium Tinplate Lid series is manufactured in strict compliance with international standards such as JIS G3303, ASTM A623, DIN, and EN 10202, offering distinctive performance benefits:

• Perfect Double-Seaming Performance: Engineered with highly consistent curl heights and chuck dimensions, our lids fit seamlessly onto automated seaming chucks. This precision tolerance eliminates line jams, reduces scrap rates, and ensures flawless double-seam formation.

• Advanced Pressure-Relief Expansion Profiles: Stamped with concentric expansion rings, the lids flex predictably during high-temperature thermal retort processes (up to 121°C–131°C). They safely relieve internal pressure without buckling and snap back into a tight vacuum post-cooling.

• Tailored High-Performance Coating Matrix: We provide multi-tier internal coating options—including clear or gold Epoxy-Phenolic linings, highly flexible Organosols, and specialized aluminum-pigmented anti-sulfur lacquers. These barriers protect against aggressive fruit acids, brines, and sulfur-heavy animal proteins.

• Optimized Tempering Options: Available in Batch Annealed (BA) and Continuously Annealed (CA) processing states, across hardness parameters from T1 up to high-strength Double Reduced (DR7, DR8, DR9) grades. This allows you to choose the exact balance of ductility and puncture resistance required.

• Eco-Friendly Sustainability: Made from 100% infinitely recyclable magnetic carbon steel, our lid products support the circular economy, allowing for efficient magnetic sorting and low-emission scrap recycling.

The following matrix outlines our standard manufacturing capabilities and available configurations for global Tinplate Lid wholesale procurement:

Our adaptable Tinplate Lid series provides robust sealing solutions across diverse consumer and industrial packaging sectors worldwide:

• Processed Fruits and Acidic Vegetables: Perfect for locking in the freshness of tomatoes, pineapples, corn, and citrus fruits, utilizing acid-resistant linings to prevent internal metal interaction.

• Seafood, Meat, and Poultry Canning: Widely deployed as bottom closures for fish, luncheon meat, and pet food cans, relying on zinc-oxide or aluminized coatings to stop sulfur-staining during thermal autoclaving.

• Infant Formula and Dry Powder Containers: Serving as a reliable airtight barrier for milk powder, coffee tins, protein blends, and tea canisters, keeping moisture levels at absolute zero.

• Beverage and Liquid Closures: Utilized as component ends for modern multi-piece beverage cans, ensuring secure pressure retention and gas-tight carbonation containment.

• Composite Paperboard Packaging: Integrated as durable metal bottoms or decorative friction caps for rigid paper tubes, snack cylinders, and luxury gift tubes.

A: SPTE (Electrolytic Tinplate) features a micro-thin layer of pure tin coating, offering excellent solderability, high metallic luster, and robust acid resistance. TFS (Tin-Free Steel) is coated with chromium and chromium oxide instead of tin. TFS is highly cost-effective and provides exceptional lacquer adhesion, making it an excellent choice for components that will be fully lacquered on both sides, such as deep-drawn food ends, crown caps, and two-piece can bottoms.

A: The proper tin coating weight depends on the corrosiveness of the filling product and the anticipated shelf life. For non-corrosive, dry ingredients (milk powder, dry coffee, tea), lighter coatings like 1.1/1.1 g/m² are adequate. For high-moisture processed foods, a standard 2.8/2.8 g/m² is recommended. For highly corrosive or acidic ingredients, heavy coatings or asymmetric differential coatings (e.g., 5.6 g/m² on the inner side and 2.8 g/m² on the outer side) ensure optimal long-term protection.

A: We implement a rigorous, multi-layered export preservation protocol. The lids are stacked tightly into protective, moisture-resistant kraft paper sleeves or heavy-duty plastic tubes to prevent surface friction and scratching. These sleeves are then packed into ISPM-15 certified wooden crates or robust pallets, wrapped completely in VCI (Volatile Corrosion Inhibitor) film, and bound with high-tensile steel straps to block maritime humidity and prevent shifting during transit.

A: Yes. Our engineering team can manufacture lids to match your existing seamer profile, curl configuration, and countersink depth. For new global enterprise clients, we can provide precision-stamped sample batches or clear dimensional drawings for technical review. This allows you to verify mechanical compatibility on your automated seaming machinery before initiating full-scale container orders.
