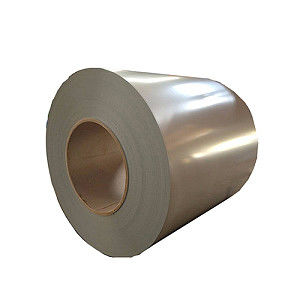

Good Quality food grade electrolytic tin plate ETP steel coil for
packaging Tin plate
Electrolytic Tin Plate English Abbreviations: SPTE. It refers to cold rolled low carbon thin
steel plate or steel strip coated with commercial pure tin on both sides.
Due to its good sealing, preservation, light avoidance, firmness and unique metal decoration
charm, Electrolytic Tin Plate packaging has a wide coverage in the packaging container
industry, and is a universal packaging variety in the world.
Because of its strong anti-oxidation, various styles and exquisite printing, Electrolytic Tin
Plate packaging container is deeply loved by customers, widely used in food packaging,
pharmaceutical packaging, daily necessities packaging, instrument packaging, industrial
packaging and so on.
Applications of Tinplate and TFS
| ETP |
ETP is primarily used for packaging foodstuffs and beverages, but it is also used in containers for oils, grease, paints, polishes, chemicals and many other products. Aerosol containers and caps and closures are also made from ETP. |
| TFS | TFS are most frequently used for can tops, screw and lug caps, snap and press-on closures and shallow-drawn food cans. |
| In Electronics | Electrodes, Cable tape, Magnetic screen covers, etc. |
| In Engineering | Automotive oil filters, Automotive air filters, Gaskets, etc. |
| In Construction | Gas meter internal components, Heat exchangers, cookware, shelving, etc. |
Electrolytic Tin Plate
Prime quality tin plate sheet electrolytic tinplate transparent coated for tin can making
PORT: ShangHai
| Thickness | 0.14mm to 0.5mm |
| Width | 660 to 1020 mm |
| Length | 600 to 1200 mm or Coils |
| Tin coating | 2.8/2.8g/m², 5.6/5.6g/m², 2.8/5.6g/m²,2.0/2.0g/m² or according to customer's requirement |
| Temper | T2, T2.5, T3, T3.5, T4,T5 ,DR7,DR7M,DR8 BA & CA |
| Annealing | CA(Continuous annealing) and BA(Batch annealing) |
| Surface | Bright/Stone/Silver finish with passivation treatment; DOS oil |
| MOQ | 25 tons or one container |
| Payment | T/T |
| Applications: | Widely used for metal packaging industry. Such as making cans for food, tea, oil, paints, chemicals, aerosol, gifts, printing |
Workshop Show
OUR FACTORY
Shanghai Quanjiang Industrial Co.,ltd is a large-scale enterprise integrating
manufacturing and sales( international export). Established in 2001.
It's located in Shanghai,China, We has advanced production equipment,
equiped with pushing machine, press,large heat treatment furnace,chamfering
machine,sawing machine, sawing machine,large sandblasting machine and
other key equipment and a variety of testing instruments.
Production Process
PARTNER
HONOR CERTIFICATE
Information Required with orders and inquirys
Orders and inquiried shall be accompanied by the following information.
1. products name and grade
2.coaing and mass( for Tinplate only),temper grade,finish, and products size.
3.rolling direction
4.quantity
5.application and delivery date
6.number of sheets per packaging( for cut to length products)
7.inside diameter amd maximum acceptable unit coil weight (for coils products).
8.film type,color, contents,and other details of use and environment.
9.other special requirements,if any.
